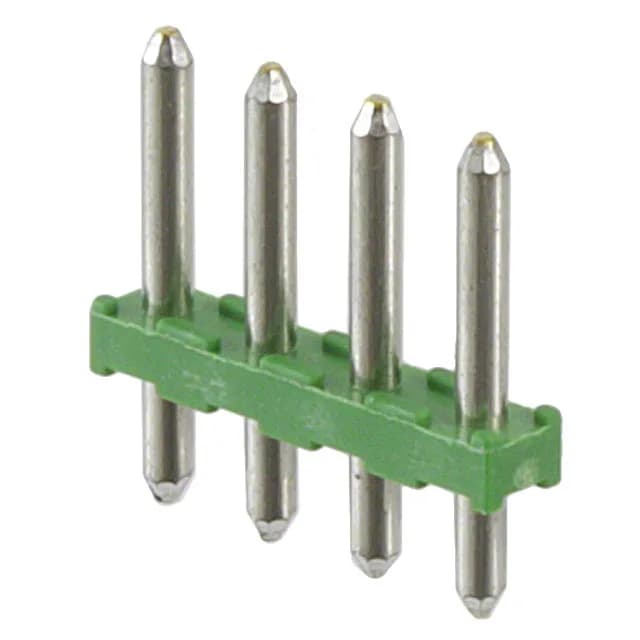

TE Connectivity AMP Connectors 1986717-4, Header, Male Pins, Unshrouded, 4 positions, 0.138" (3.50mm) pitch, 1 level, vertical through-hole, tin mating finish, 2 A, 150 V, UL94 V-0, Green, Bulk.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Unshrouded |
| Mounting | Through Hole |
| Voltage - UL | 150 V |
| Current - UL | 2 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.079\" (2.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The 1986717-4 is a 4-position, single-level unshrouded header from TE Connectivity's terminal block header family, pitched at 0.138" (3.50mm) — the standard spacing for compact terminal block receptacles.
The 2 A current rating is a signal-level ceiling; derate above 110°C per the product drawing. Vertical orientation and through-hole solder termination keep the header rigid on the board.
The 1986717-4 is an active part sourced to order. Submit an RFQ with your target quantity for current pricing and lead time — no stock-holding claim is made here.
Yes — the 0.138" (3.50mm) pitch and unshrouded male pin design are intended to mate with standard 3.50mm pitch terminal block plug receptacles. Confirm the mating half's pin count and keying before ordering.
Yes, it is ROHS3 compliant per the manufacturer's listing.
