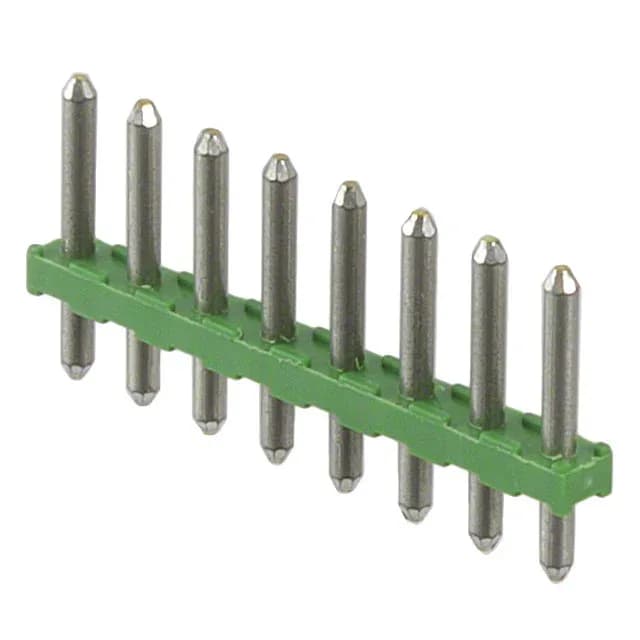

TE Connectivity AMP Connectors 1986717-8, Header, Male Pins, Unshrouded, 8 positions, 0.138" (3.50mm) pitch, vertical through-hole, tin mating finish, UL94 V-0, 2 A, 150 V, -40°C ~ 110°C, bulk.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Unshrouded |
| Mounting | Through Hole |
| Voltage - UL | 150 V |
| Current - UL | 2 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.079\" (2.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
The 1986717-8: This is an 8-position, single-level vertical header with 0.138" (3.50mm) pitch — the footprint and position count a designer or buyer confirms first when matching a terminal block receptacle or populating a BOM line. The unshrouded, vertical orientation and through-hole solder termination keep the assembly simple: pins sit straight on the board, no right-angle routing, no shroud to interfere with adjacent components.
It has 8 positions on a single level with 0.138" (3.50mm) pitch.
Yes, it is ROHS3 compliant.
