TE Connectivity AMP Connectors 1986718-3 — Header Plugs & Sockets

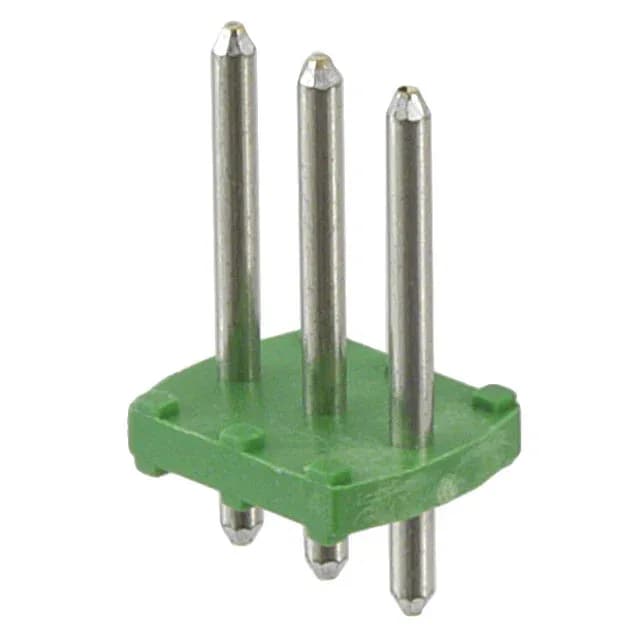

1986718-3 TE Connectivity 3-Pin Unshrouded Header

MPN1986718-3
Active

TE Connectivity AMP Connectors 1986718-3, Header, Male Pins, Unshrouded, 3 positions, 0.138" (3.50mm) pitch, vertical through-hole, tin mating finish, UL94 V-0, green housing, bulk pack.

$0.9400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1986718-3 key specifications
ParameterValue
TypeHeader, Male Pins, Unshrouded
MountingThrough Hole
Voltage - UL150 V
Current - UL2 A
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA), Nylon
Insulation height0.094\" (2.40mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)
PackageBulk

All specifications

1986718-3 additional specifications
ParameterValue
Number of levels1
Termination styleSolder
Header orientationVertical
Contact tail length0.138\" (3.50mm)
Positions3
Positions per level3
Contact mating finishTin

Product details

The 1986718-3 is a 3-position, unshrouded male pin header from TE Connectivity's terminal block header family, designed for vertical through-hole mounting on a 0.138" (3.50mm) pitch. The tin-plated contacts handle moderate mating cycles — fine for field-installed equipment that doesn't see frequent reconnects.

The 3.50mm pitch matches the standard spacing of many terminal block plugs and receptacles — if your BOM calls for a 3.5mm pitch header, this is the pin layout you need. The contact tail length is also 0.138" (3.50mm), which suits standard 1.6mm-thick PCBs with through-hole solder termination.

Frequently asked questions

What is the current rating of 1986718-3?

Rated 2 A per contact under UL conditions. This is a signal-level header — not suitable for power distribution above that per-contact limit.

Is 1986718-3 compatible with 3.5mm wire-to-board connectors?

Yes — the 0.138" (3.50mm) pitch matches standard 3.5mm terminal block plugs and receptacles. Confirm the mating half's keying and pin count (3 positions) before ordering.
