TE Connectivity AMP Connectors 1986718-6 — Header Plugs & Sockets

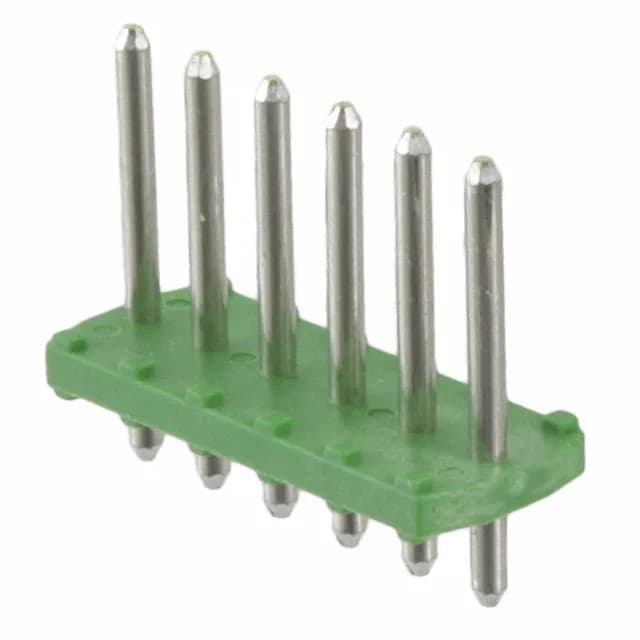

1986718-6 TE Connectivity 6-Pos 3.5mm Vertical Header

MPN1986718-6
Active

TE Connectivity AMP Connectors, 1986718-6, 6-position unshrouded header, vertical orientation, 3.50mm pitch, tin-plated copper alloy contacts, UL94 V-0 polyamide housing, -40°C to 110°C, 2 A / 150 V UL.

$3.2300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1986718-6 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1986718-6 key specifications
ParameterValue
TypeHeader, Male Pins, Unshrouded
MountingThrough Hole
Voltage - UL150 V
Current - UL2 A
Operating temperature-40°C~110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA), Nylon
Insulation height0.094\" (2.40mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)
PackageBulk

All specifications

1986718-6 additional specifications
ParameterValue
Number of levels1
Termination styleSolder
Header orientationVertical
Contact tail length0.138\" (3.50mm)
Positions6
Positions per level6
Contact mating finishTin

Product details

6-Pin Vertical Header for Terminal Block Mating

The 1986718-6: This is a 6-position unshrouded pin header from TE's terminal block header family, designed to mate with a matching plug. Vertical through-hole solder tails, 0.138 inch long, suit standard 1.6 mm PCBs. The unshrouded design means no keying — plug orientation is set by the board layout. Operating range from -40°C to 110°C covers industrial control cabinets and outdoor telecom enclosures where the ambient temperature cycles daily.

Sourced through independent distribution; current pricing and stock confirmed at RFQ against your BOM quantity. No direct OEM stock-holding claim.

Frequently asked questions

How can I order 1986718-6 and check current stock?

Submit an RFQ with your target quantity. No stock-holding claim is made on this listing.

What is the pitch of 1986718-6?

0.138 inch (3.50 mm). This is the centre-to-centre spacing between adjacent pins.

Is 1986718-6 RoHS compliant?

Yes, it carries ROHS3 compliance.

What is the closest functional second-source for 1986718-6?

Peer MPN 1-2213934-1 is a bulk-packaged, active-lifecycle 6-position vertical header from the same TE series. Confirm contact plating and colour match before substituting.
