TE Connectivity AMP Connectors 1986720-5

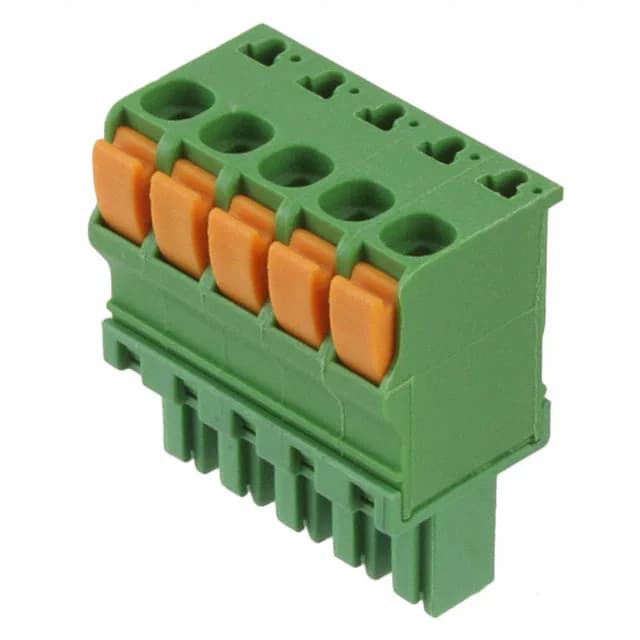

1986720-5 TE Connectivity 5-Pin 3.81mm Terminal Block Plug

MPN 1986720-5
Active

TE Connectivity AMP Connectors 1986720-5, a 5-position plug with female sockets, 0.150" (3.81mm) pitch, push-in spring termination, rated 9 A at 300 V, green housing, UL94 V-0, free-hanging in-line.

$7.2300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1986720-5 key specifications
ParameterValue
TypePlug, Female Sockets
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL9 A
Plug wire entry180°
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA), Nylon
Insulation height0.459\" (11.66mm)

All specifications

1986720-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesSide Stacking
Number of levels1
Termination styleScrewless - Leg Spring, Push-In Spring
Positions5
Positions per level5
Contact mating finishTin

Product details

Wiring and Enclosure Fit

The 1986720-5: This is a 5-position plug, female sockets, from the TE Connectivity terminal block family, base number 1986720. It uses a 0.150" (3.81mm) pitch, which matches standard 3.81mm pin headers for wire-to-board connections. Rated 9 A per circuit at 300 V, with a wire range of 14-30 AWG (0.05-2mm²). The push-in spring termination (screwless leg spring) lets you land solid or ferruled stranded wire without a screwdriver — just strip and push. The plug is free-hanging (in-line) with 180° wire entry and side-stacking feature for multi-level builds.

MPN
1986720-5
