TE Connectivity AMP Connectors 1986722-3 — Header Plugs & Sockets

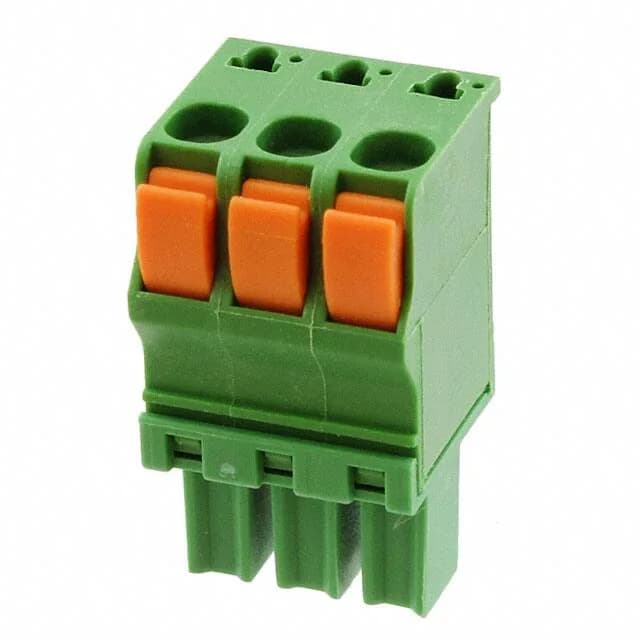

1986722-3 TE Connectivity 3-Position 3.81mm Plug

MPN1986722-3
Active

TE Connectivity AMP Connectors 1986722-3, 3-position plug, female sockets, 0.150" (3.81mm) pitch, 9 A, 300 V, screwless push-in spring termination, free hanging, side stacking, UL94 V-0, green housing.

$5.5200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1986722-3 datasheet (PDF)
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1986722-3 key specifications
ParameterValue
TypePlug, Female Sockets
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL9 A
Plug wire entry180°
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C~110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA), Nylon
Insulation height0.459\" (11.66mm)

All specifications

1986722-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesSide Stacking
Number of levels1
Termination styleScrewless - Leg Spring, Push-In Spring
Positions3
Positions per level3
Contact mating finishTin

Product details

3-Position Plug for 3.81mm Headers

The green housing is keyed for polarization, preventing mis-mating with adjacent headers of different pitch.

Screwless Push-In Termination Speeds Wiring

Termination is screwless — a leg spring and push-in mechanism accepts solid or ferruled stranded wire from 14-30 AWG (0.05-2 mm²). No tool needed for insertion; the spring holds the conductor against the tin-plated copper alloy contact. The 180° wire entry keeps the cable aligned with the plug axis, simplifying routing in tight enclosures.

Side Stacking Expands Circuit Count

The side stacking feature lets multiple 1986722-3 plugs interlock side-by-side on a continuous header. This increases the total circuit count without a wider PCB footprint — useful for modular I/O blocks where the number of signals grows per panel revision.

Frequently asked questions

Where can I buy 1986722-3?

The 1986722-3 is sourced through independent distribution against an RFQ. No stock-holding claim is made — each order is sourced per your BOM line.

What wire gauge does 1986722-3 accept?

The screwless push-in termination accepts 14-30 AWG solid or ferruled stranded wire, equivalent to 0.05-2 mm². The spring leg grips the conductor without a tool.

Can 1986722-3 be used with 3.81mm headers?

Yes — the 0.150" (3.81mm) pitch is designed to mate with a standard 3.81mm pin header. The plug's female sockets engage the header pins; the side stacking feature allows multiple plugs on the same header.

What is the closest functional second-source for 1986722-3?

Peer MPNs 1-2213934-1, 1-2305909-1, and 1-2213935-1 are from the same series and share the same bulk package and active status. The primary difference is position count — 1986722-3 is a 3-position plug. Confirm your BOM position count before substituting.
