TE Connectivity AMP Connectors 1986722-6

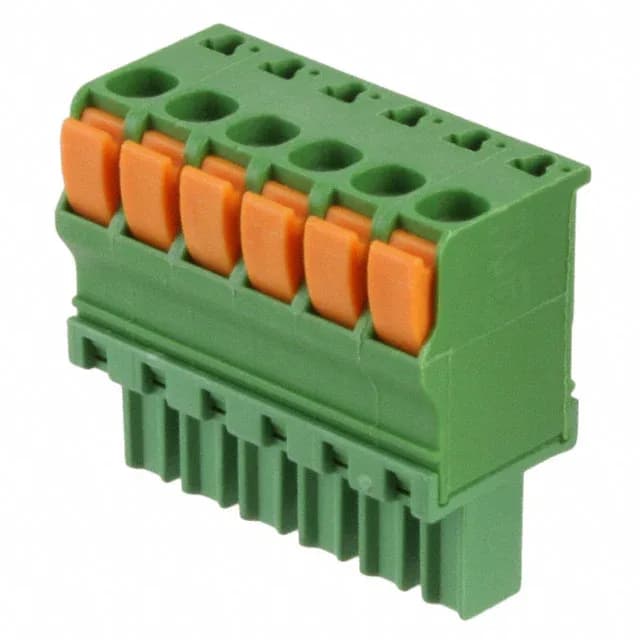

1986722-6 TE Connectivity 6-Pin 3.81mm Plug Terminal Block

MPN 1986722-6
Active

TE Connectivity AMP Connectors 1986722-6, 6-position plug, female sockets, 0.150" (3.81mm) pitch, screwless push-in spring termination, 9 A / 300 V, UL94 V-0, free-hanging, 180° wire entry, green housing, bulk pack.

$11.1800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1986722-6 key specifications
ParameterValue
TypePlug, Female Sockets
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL9 A
Plug wire entry180°
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA), Nylon
Insulation height0.459\" (11.66mm)

All specifications

1986722-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesSide Stacking
Number of levels1
Termination styleScrewless - Leg Spring, Push-In Spring
Positions6
Positions per level6
Contact mating finishTin

Product details

6-Position Push-In Plug for 3.81mm Terminal Blocks

The 1986722-6: This is a 6-position plug with female sockets from TE's terminal block header family, pitched at 0.150" (3.81mm). It terminates wires via a screwless leg spring – push the stripped conductor in and the spring clamps it, no screwdriver needed. The 180° wire entry keeps the cable path straight, which helps when you're stacking multiple plugs side-by-side using the side-stacking feature. Rated 9 A per circuit at 300 V with a 14-30 AWG wire range (0.05-2 mm²), it handles typical control, sensor, and low-power distribution circuits inside an enclosure.

Screwless Termination and Wire Range

The push-in spring accepts solid or ferruled stranded wire from 14 AWG down to 30 AWG – the spring grabs the conductor and holds it without a clamp screw. For a 6-position plug in a panel, that means you can land all six wires in the time it takes to torque one screw terminal.

MPN
1986722-6
