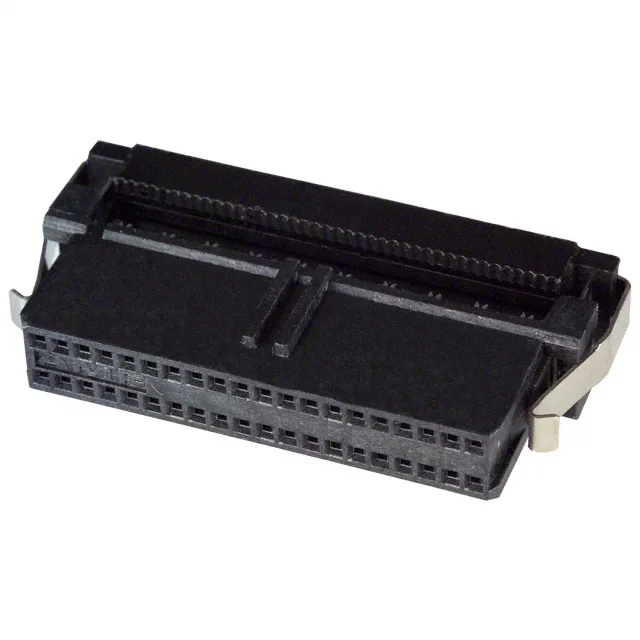

2-111196-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPMODU System 50 2-111196-0, 40P IDC Receptacle

MPN2-111196-0
Active

TE Connectivity AMPMODU System 50 receptacle, 40 positions, 0.050" (1.27mm) pitch, 2 rows, IDC termination, 30-32 AWG ribbon cable, gold contacts, latch lock, black housing.

$14.5000Ref. price · indicative, final on quote
2-111196-0 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

2-111196-0 Technical Specifications
ParameterValue
SeriesAMPMODU System 50
Wire typeRibbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Wire gauge30-32 AWG
Cable terminationIDC
ColorBlack
Pitch0.050\" (1.27mm)
PackageBulk
FeaturesFeed Through
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions40
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity AMPMODU System 50 2-111196-0 is a 40-position IDC receptacle built for mass-terminating 30-32 AWG ribbon cable. The 0.050" (1.27mm) pitch matches the standard spacing of common ribbon cables, so the insulation on each conductor aligns with a dual-beam contact slot — one pass through the press seats all 40 conductors at once. The 2-row layout with 0.100" (2.54mm) row spacing mirrors the footprint of a standard 0.100" header, meaning this receptacle mates directly with a matching AMPMODU System 50 pin header without needing an adapter.

Gold Plating and Latch Lock for Field Service

Tin plating would fret after a few reconnections; the gold here keeps contact resistance stable across the life of the harness.

Frequently asked questions

What wire gauge does 2-111196-0 accept?

It accepts 30-32 AWG ribbon cable. The IDC slots are sized for that narrow insulation range — thicker wire won't seat properly.

Where can I buy 2-111196-0?

This part is sourced to order against an RFQ through independent distribution. Availability and pricing are confirmed at quote time.
