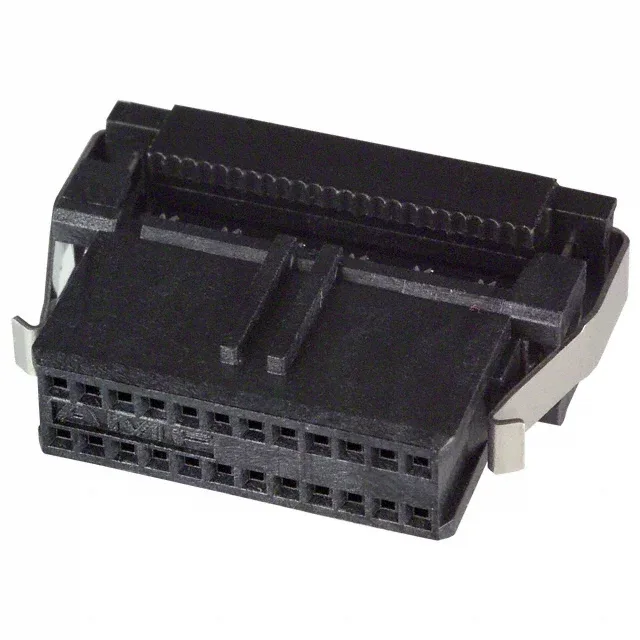

2-111196-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 2-111196-8 AMPMODU System 50 Receptacle, 24-Position IDC

MPN2-111196-8
Active

TE Connectivity AMPMODU System 50 receptacle, 2-111196-8, 24-position dual-row IDC, 0.050" (1.27mm) pitch, 30-32 AWG ribbon cable, gold 30.0µin contacts, latch lock, free-hanging, black housing.

$11.8600Ref. price · indicative, final on quote
2-111196-8 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

2-111196-8 Technical Specifications
ParameterValue
SeriesAMPMODU System 50
Wire typeRibbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Wire gauge30-32 AWG
Cable terminationIDC
ColorBlack
Pitch0.050\" (1.27mm)
PackageBulk
FeaturesFeed Through
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions24
Contact finish thickness30.0µin (0.76µm)

Product details

24-Position IDC Receptacle for 0.050" Ribbon Cable

Its 0.050" (1.27mm) pitch matches the standard 0.050" ribbon cable conductor spacing and the mating 0.050" pitch header footprint — a direct fit for any 24-conductor ribbon cable assembly. The black housing carries a Feed Through feature, meaning the IDC slot passes through the body — the cable exits both sides if needed, or one side is trimmed flush. This is a common detail on AMPMODU System 50 receptacles used in daisy-chain or pass-through cable assemblies.

Wire Gauging and Termination

This receptacle accepts 30-32 AWG ribbon cable. No crimp tool or wire stripping is needed.

The lock snaps audibly when fully mated and provides positive retention.
