26-Position IDC Receptacle for 0.050" Pitch Ribbon Cable

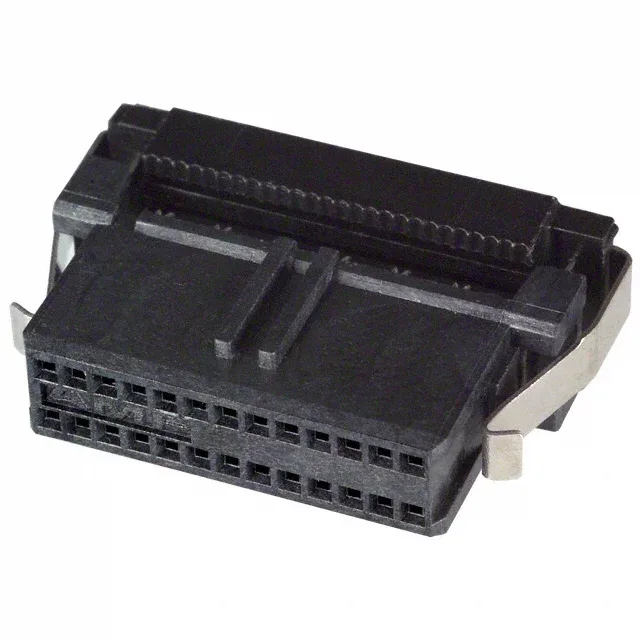

The TE Connectivity AMPMODU System 50 2-111196-9 is a 26-position, dual-row IDC receptacle designed for mass-termination to 30-32 AWG ribbon cable. The latch lock snaps onto the mating header shroud for positive retention under vibration, and the feed-through feature lets you daisy-chain signals through the connector body without a separate pass-through block.
The 30-32 AWG range covers the standard ribbon cable gauges used in 0.050" pitch flat cable assemblies.
The 2-111196-9 mates with the matching AMPMODU System 50 0.050" pitch pin header (male pins, typically with a shroud). The feed-through feature allows the receptacle body to pass signals through to another connector or a board via a pass-through slot — useful for routing signals across a backplane or through a panel without a separate bulkhead connector.
