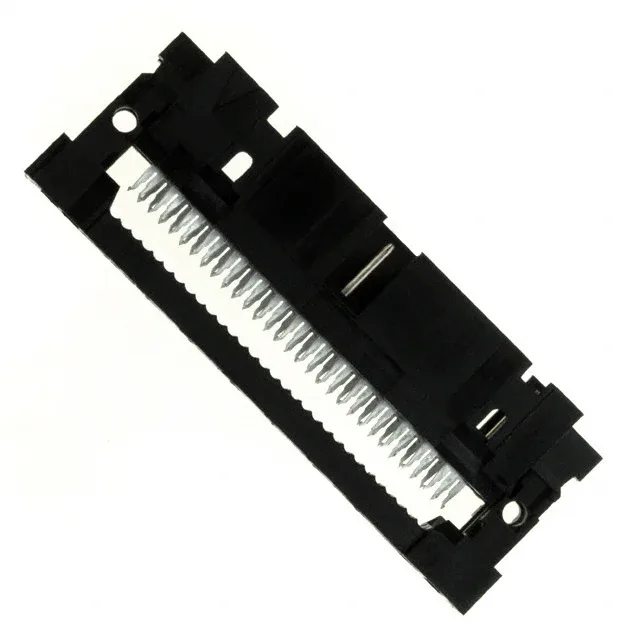

2-111446-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity AMP-Latch 2-111446-1, 30P IDC Plug

MPN2-111446-1
Active

TE Connectivity AMP-Latch IDC plug, 30 positions, 2 rows, 0.100" (2.54mm) pitch, gold 30.0µin contacts, 26-28 AWG ribbon cable, free-hanging, tray.

$11.3000Ref. price · indicative, final on quote
2-111446-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

2-111446-1 Technical Specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
GenderMale Pin
Mounting typeFree Hanging (In-Line)
Connector typePlug
Wire gauge26-28 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTray
FeaturesFeed Through
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions30
Contact finish thickness30.0µin (0.76µm)

Product details

30-Position IDC Plug for Ribbon Cable

The TE Connectivity AMP-Latch 2-111446-1 is a 30-position IDC plug designed for mass-termination to 26-28 AWG ribbon cable. The feed-through design lets the ribbon cable pass straight through the connector body, which simplifies daisy-chain routing in harness assemblies.

The 26-28 AWG range covers the common ribbon cable gauges for 30-conductor flat cable. The black housing is a single-piece moulding with integral strain relief for the ribbon cable entry.

The connector is keyed via the polarising ribs on the housing to prevent mis-mating with headers of different position counts.
