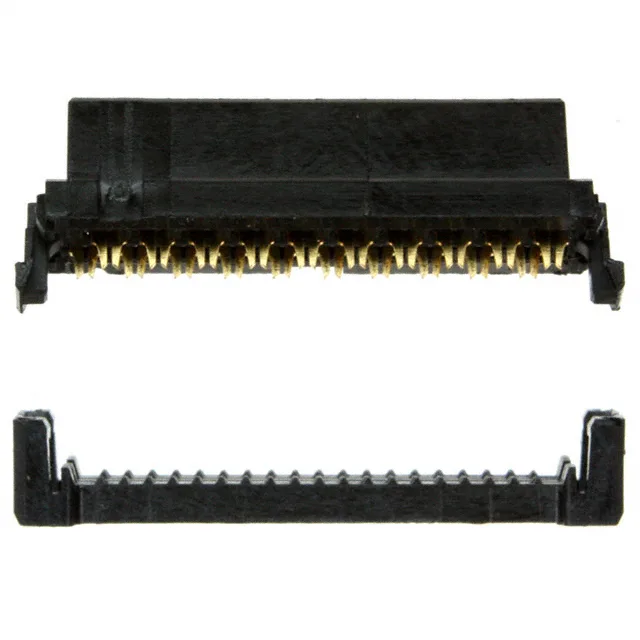

2-111623-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMP-Latch 2-111623-1, 20 Pos IDC Receptacle, 2.00mm Pitch

MPN2-111623-1
Active

TE Connectivity AMP-Latch receptacle, 20 positions, 2 rows, 0.079" (2.00mm) pitch, IDC termination, 28 AWG ribbon cable, gold 30.0µin contacts, free-hanging, black, RoHS.

$7.0500Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

2-111623-1 Technical Specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge28 AWG
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
PackageBulk
FeaturesFeed Through, Polarizing Key
Row spacing0.079\" (2.00mm)
Contact finishGold
Rows2
Positions20
Contact finish thickness30.0µin (0.76µm)

Product details

AMP-Latch IDC Receptacle, 20-Position, 2.00mm Pitch

The TE Connectivity AMP-Latch 2-111623-1 is a 20-position, 2-row receptacle built for mass-termination of 28 AWG ribbon cable via IDC (insulation displacement) contacts.

What Mates with This Receptacle

The polarizing key in the housing aligns with the header's keying slot, so a reversed or offset insertion is physically blocked. The IDC termination is specific to 28 AWG ribbon cable — the insulation displacement slot is sized for that gauge, and forcing a different wire size risks an open or intermittent connection.

Frequently asked questions

Is 2-111623-1 RoHS compliant?

Yes, the 2-111623-1 is RoHS Compliant per TE's compliance record.
