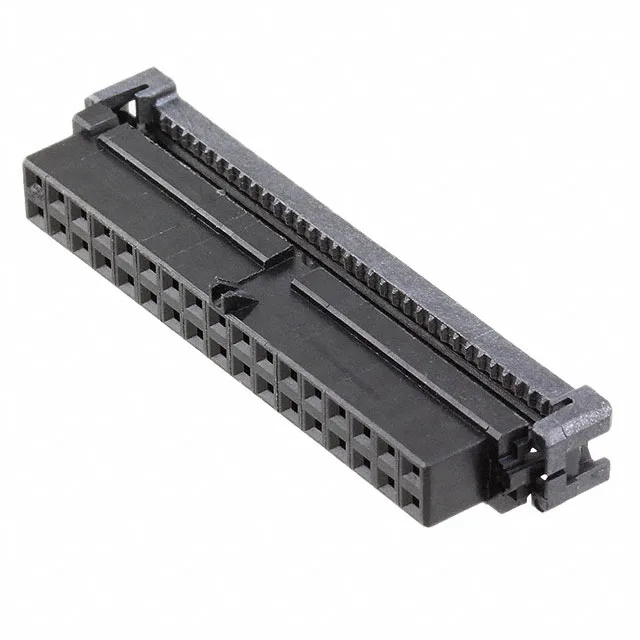

TE Connectivity AMP-Latch receptacle, 34 positions, 2 rows, 0.079" (2.00mm) pitch, IDC termination for 28 AWG ribbon cable, gold 30.0µin contacts, free-hanging, black.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Wire type | Ribbon Cable |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Wire gauge | 28 AWG |
| Cable termination | IDC |
| Color | Black |
| Pitch | 0.079\" (2.00mm) |
| Package | Tray |
| Features | Feed Through, Polarizing Key |
| Row spacing | 0.079\" (2.00mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 34 |
| Contact finish thickness | 30.0µin (0.76µm) |
The TE Connectivity AMP-Latch 2-111623-8 is a 34-position, 2-row IDC receptacle designed for mass-termination to 28 AWG ribbon cable. The black housing includes a feed-through slot and a polarizing key to prevent mis-mating — the key aligns with the matching header's keyway so the cable cannot be installed reversed.
No. The 2-111623-8 uses a 0.079" (2.00mm) pitch, which is the standard for AMP-Latch connectors. A 0.050" pitch cable will not align with the contact slots.
Submit a request with your target quantity to confirm availability and current pricing.
