TE Connectivity AMP Connectors 2-1377175-4 — Quick-Disconnect Terminals

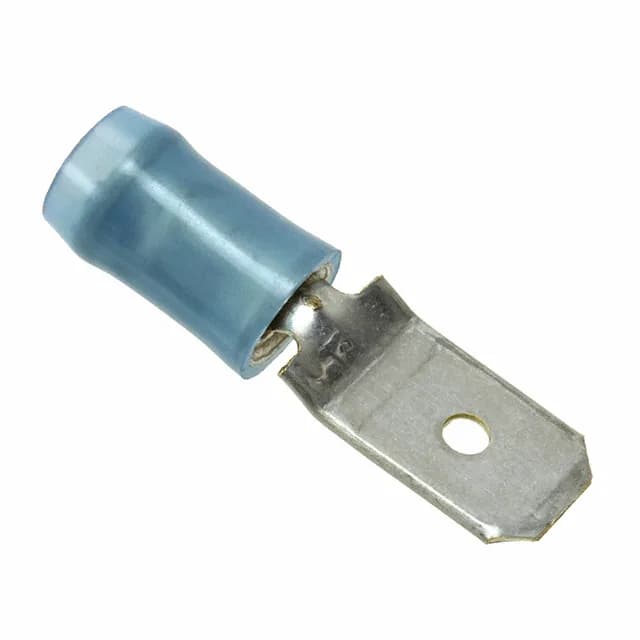

TE 2-1377175-4 Faston PIDG Tab Terminal, 0.250" Blue

MPN2-1377175-4
Active

TE Connectivity AMP Connectors Faston, PIDG quick-disconnect tab, order code 2-1377175-4, male, 0.250" (6.35mm) tab width, 13-17 AWG, tin-plated brass, crimp termination, non-mating end insulated, blue, bulk.

$1.4800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFaston, PIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-1377175-4 specifications
ParameterValue
SeriesFaston, PIDG
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge13-17 AWG
ColorBlue
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderMale
PackageBulk
FeaturesSerrated Termination
InsulationNon-Mating End Insulated
Tab length0.370\" (9.40mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.925\" (23.50mm)
Insulation diameter0.154\" (3.91mm)

Product details

Blue insulated male tab, 0.250" width

The 2-1377175-4 is a male quick-disconnect tab from the TE Faston, PIDG series, insulated on the non-mating end with a blue sleeve. It accepts 13-17 AWG wire, crimps to the conductor, and carries a tin-plated brass contact rated for the standard 0.250" (6.35mm) tab interface.

Series tab width and wire range contrast

The Utilux-series peers 1-1659250-0 and 1-1627194-4 are non-insulated female receptacles with a 0.248" to 0.250" tab width for 15-20 AWG wire — the 2-1377175-4's insulated male tab serves a different wiring point in the harness.

Frequently asked questions

What is the color and gender of 2-1377175-4?

The terminal is blue and male (tab).

Will 2-1377175-4 drop into a panel specified around 1377175-8?

No — 2-1377175-4 is a male tab with a 0.250" (6.35mm) width, while 1377175-8 is a female receptacle with a 0.312" (7.92mm) width. The two are not mechanically or electrically interchangeable without changing the mating connector.
