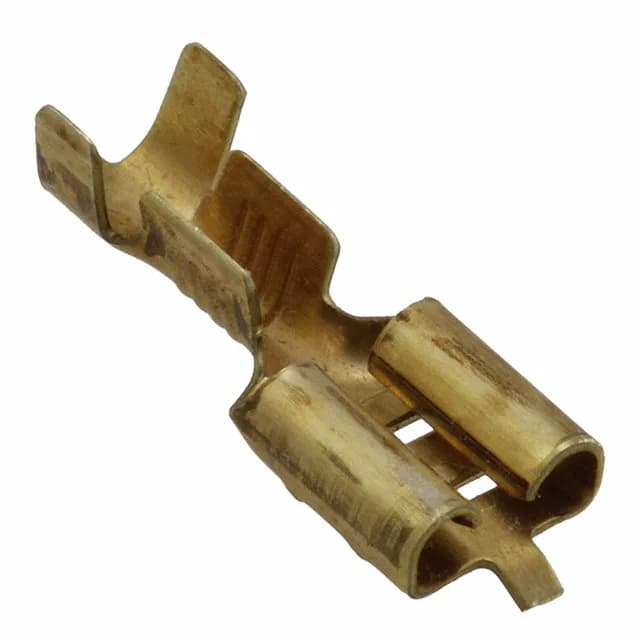

TE Connectivity AMP Connectors Faston quick-disconnect receptacle, order code 2-160256-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 13-17 AWG, non-insulated, brass contact, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 13-17 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.303\" (7.70mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Length - overall | 0.748\" (19.00mm) |
| Insulation diameter | 0.118\" ~ 0.169\" (3.00mm ~ 4.29mm) |
The 2-160256-1 is a female quick-disconnect receptacle in the TE Faston series, accepting 0.250" (6.35mm) wide tabs with 0.032" (0.81mm) thickness. The crimp barrel accepts 13-17 AWG wire; the non-insulated design suits applications where the terminal is covered by a housing or heat-shrink after crimping.
Female receptacle.
ROHS3 Compliant per TE Connectivity.
