Tab width and wire range
The 2-160304-4: It crimps onto 13.5-17 AWG wire and carries a nickel-plated steel contact — the nickel finish suits moderate-cycle applications where corrosion resistance is needed without the cost of gold.

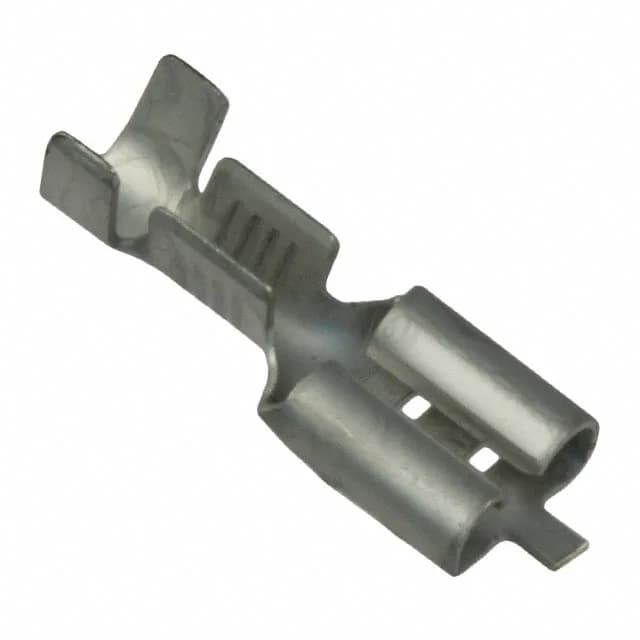

2-160304-4 TE Faston QC Receptacle, 13.5-17 AWG, 0.250" Tab
MPN2-160304-4
Active
TE Connectivity AMP Faston quick-disconnect receptacle, order code 2-160304-4, female, 0.250" (6.35mm) tab width, 13.5-17 AWG, nickel-plated steel, crimp termination, free hanging, non-insulated, bulk package.
$0.3500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 13.5-17 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Steel |
| Gender | Female |
| Package | Bulk |
| Insulation | Non-Insulated |
| Tab length | 0.303\" (7.70mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Nickel |
| Length - overall | 0.795\" (20.19mm) |
| Insulation diameter | 0.118\" ~ 0.169\" (3.00mm ~ 4.29mm) |
Product details
Frequently asked questions
What wire gauge does the 2-160304-4 accept?
The receptacle accepts 13.5-17 AWG wire. The insulation diameter range is 0.118" to 0.169" (3.00mm to 4.29mm).
What is the tab size for this Faston terminal?
Tab width is 0.250" (6.35mm) and tab thickness is 0.032" (0.81mm). The overall length is 0.795" (20.19mm).
