TE Connectivity AMP Connectors 2-160759-9 — Quick-Disconnect Terminals

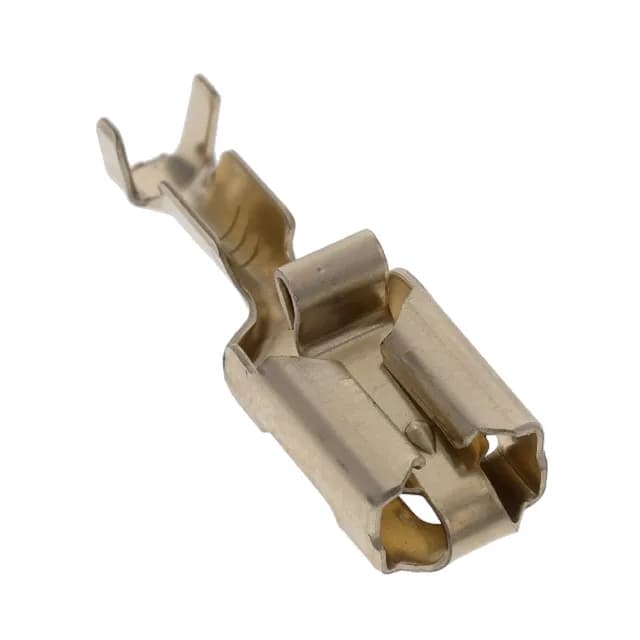

2-160759-9 TE Mark I Quick-Disconnect Terminal, 0.250"

MPN2-160759-9
Active

TE Connectivity AMP Connectors Mark I quick-disconnect terminal, order code 2-160759-9, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 16-20 AWG, non-insulated, nickel silver contact, crimp termination, free hanging.

$0.3900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMark I
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-160759-9 specifications
ParameterValue
SeriesMark I
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge16-20 AWG
Tab width0.250\" (6.35mm)
Contact materialNickel Silver
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Length - overall0.878\" (22.30mm)
Insulation diameter0.091\" ~ 0.130\" (2.31mm ~ 3.30mm)

Product details

Mark I 0.250" female quick-disconnect terminal

The 2-160759-9 is a non-insulated female quick-disconnect terminal from TE's Mark I series, accepting 16-20 AWG wire with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. The contact is nickel silver and terminates via crimp for free-hanging inline installation.

Contact material and wire range across the series

Within the Mark I series the 2-160759-9 uses a nickel silver contact, while the 160759-1, 154718-1, and 170233-1 use brass — the 2-160759-9 also accepts 16-20 AWG, whereas the 154718-1 is rated for 14-18 AWG and the 170233-1 for 14-20 AWG.

Frequently asked questions

What is the closest functional peer to 2-160759-9?

The 160759-1 is a brass-contact version of the same Mark I terminal with identical tab width, tab thickness, and wire range — it shares the same 0.250" (6.35mm) tab width and 16-20 AWG acceptance.
