TE Connectivity AMP Connectors 2-164045-4 — Backplane Connectors

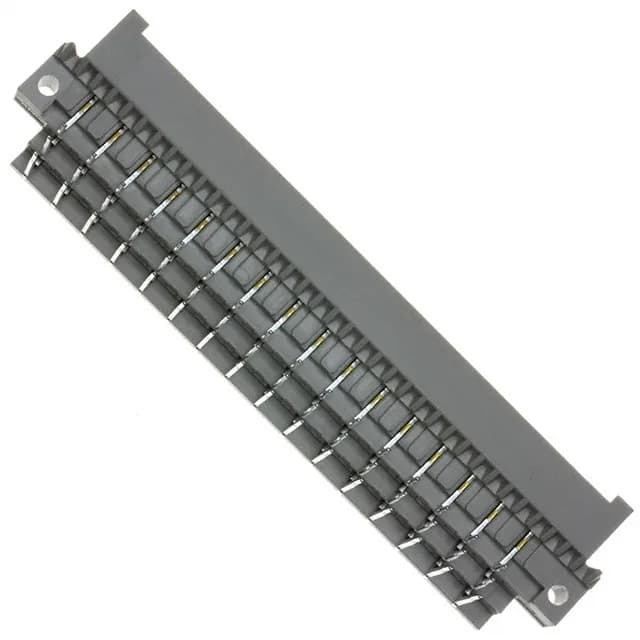

TE Connectivity 2-164045-4 Eurocard DIN Plug, 96 Pos, RA

MPN2-164045-4
Active

TE Connectivity Eurocard DIN 41612, Style F plug, 96 positions (48 loaded), 0.200" (5.08mm) pitch, 3 rows, through-hole right-angle, gold 31.5µin, solder termination.

$10.0300Ref. price · indicative, final on quote
RoHSNot applicable
SeriesEurocard
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-164045-4 specifications
ParameterValue
SeriesEurocard
MountingThrough Hole, Right Angle
Connector typePlug, Male Pins
Operating temperature-55°C ~ 125°C
Material - insulationPolyester Thermoplastic
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)
StyleF
PackageBulk
TerminationSolder
Level, class2
Contact finishGold
Rows3
Positions96
Contact finish thickness31.5µin (0.80µm)

Product details

DIN 41612 Style F Plug for Backplane Interconnects

The TE Connectivity 2-164045-4 is a DIN 41612 Style F plug, the standard male connector for Eurocard backplane systems. This right-angle through-hole plug mates parallel to the PCB, making it the daughtercard half that plugs into a Style C or R receptacle on the backplane.

96 Positions, 48 Loaded — the Real BOM Line

The 2-164045-4 is a 96-position connector body with only 48 positions loaded. This is not a partial-population option — it is the standard DIN 41612 Style F configuration, where rows a and c are loaded and row b is unloaded. If your backplane layout calls for a fully populated 96-pin male plug, you need a different style (Style C or R). For a VMEbus J1/J2 application, the 48 loaded positions match the signal and ground pin assignment exactly; the empty row b cavities provide additional clearance for routing on the backplane.

Right-Angle Solder Tails for Board-Edge Mounting

The through-hole right-angle termination places the connector body flush against the PCB edge, with the solder tails extending into plated through-holes.

Frequently asked questions

What is the difference between DIN 41612 style C and F?

Style C is a 96-position female receptacle with all three rows loaded (rows a, b, c). Style F is the 96-position male plug with only rows a and c loaded (48 positions); row b is unloaded. Style F plugs mate with Style C or R receptacles.

Can 2-164045-4 be used in VME bus applications?

Yes, the 2-164045-4 is a standard DIN 41612 Style F plug used in VMEbus systems. The 48 loaded positions (rows a and c) match the J1/J2 signal and ground pin assignments for a VMEbus daughtercard.
