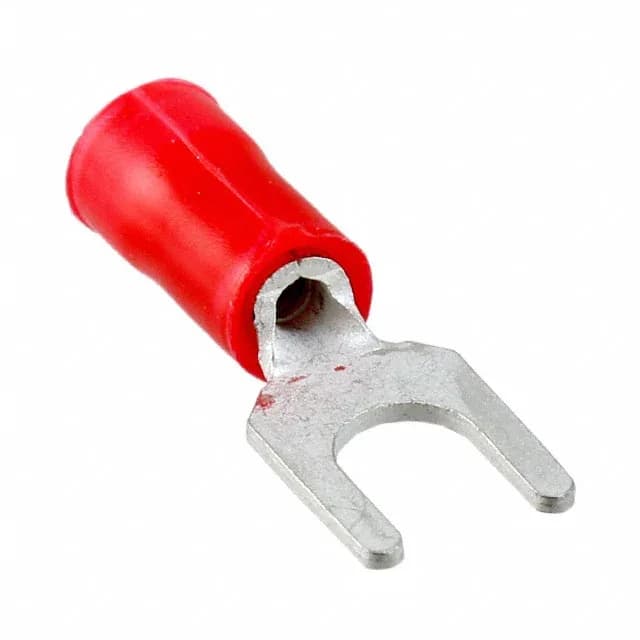

TE Connectivity AMP Connectors Plasti-Grip spade terminal, order code 2-165008-1, 16-22 AWG, M4 stud, tin-plated copper contact, PVC insulated, red, free hanging in-line, crimp termination.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.280\" (7.11mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | M4 Stud |
| Contact finish | Tin |
| Length - overall | 0.831\" (21.10mm) |
| Insulation diameter | 0.106\" ~ 0.142\" (2.69mm ~ 3.61mm) |
| Length - termination | 0.386\" (9.80mm) |
| Tongue inside opening | 0.169\" (4.29mm) |
| Length - ring center to termination | 0.248\" (6.30mm) |
The 2-165008-1 is the red-coded member of TE's Plasti-Grip spade terminal line, designed for 16-22 AWG wire and a M4 stud. The tin-plated copper contact and PVC insulation sleeve suit general-purpose power and signal termination in free-hanging in-line applications.
Red, per the Plasti-Grip series color code for 16-22 AWG wire range.
