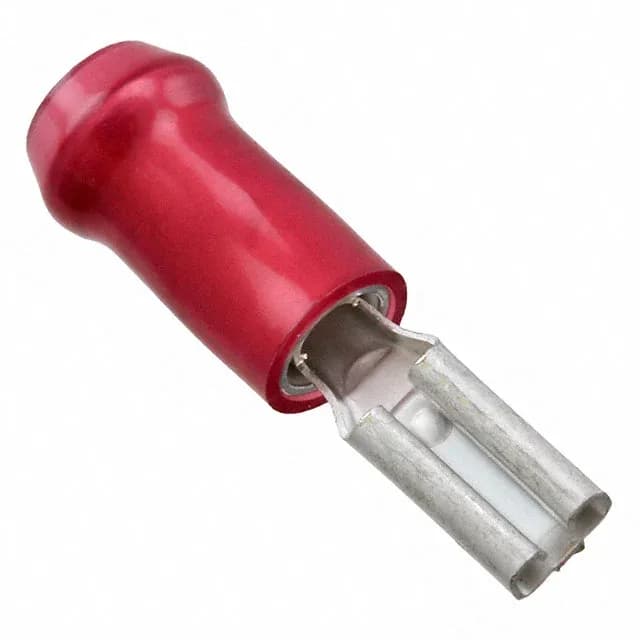

TE Connectivity AMP Faston PIDG quick-disconnect terminal, order code 2-165565-1, female, 0.110" (2.79mm) tab width, 16-22 AWG, tin-plated brass, crimp termination, free hanging, red insulation.
| Parameter | Value |
|---|---|
| Series | Faston, PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Mating End Insulated |
| Tab length | 0.248\" (6.30mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.780\" (19.81mm) |
| Insulation diameter | 0.140\" (3.56mm) |
The 2-165565-1 is a female quick-disconnect terminal in TE's Faston PIDG series, accepting 16-22 AWG wire with a 0.110" (2.79mm) tab width.
The 2-165565-1 (0.780" overall length) sits alongside the 640922-1 (0.800" length, 18-22 AWG) and the bulk-packaged 165565-1 (identical specs except package) — all share the 0.110" tab width, tin finish, and red insulation.
The terminal is ROHS3 Compliant.
