TE Connectivity AMP Connectors 2-1734248-6 — FFC / FPC Cable Assemblies

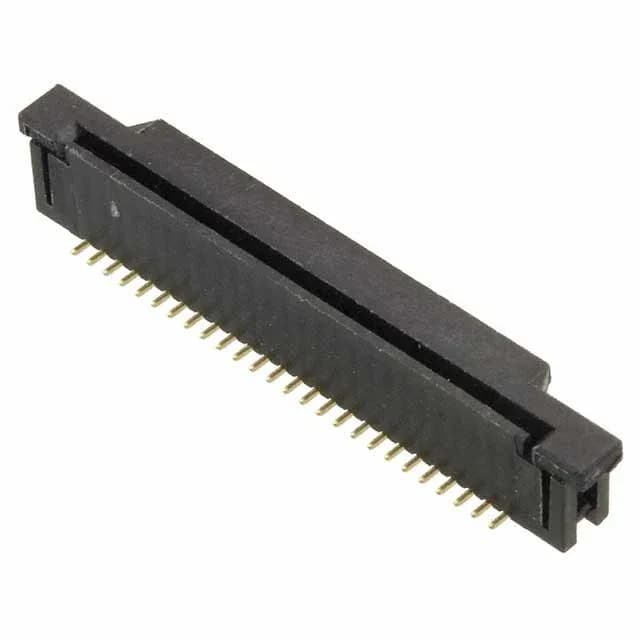

2-1734248-6 TE Connectivity FPC Connector 26 Pos 1mm Pitch

MPN2-1734248-6
Active

TE Connectivity AMP Connectors 2-1734248-6, FPC connector, 26 positions, 0.039" (1.00mm) pitch, vertical SMT, Zero Insertion Force (ZIF) with slide lock, gold flash contacts, 1 A, 125 V, -20°C ~ 85°C, UL94 V-0.

$1.3121Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1734248-6 key specifications
ParameterValue
MountingSurface Mount
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating125V
Current rating1A
Operating temperature-20°C ~ 85°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA9T), Nylon 9T
Actuator materialPolyamide (PA9T), Nylon 9T

All specifications

2-1734248-6 additional specifications
ParameterValue
Height above board0.217\" (5.50mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions26
Contact finish thicknessFlash

Product details

1.00 mm Pitch, 26-Position FPC Connector with ZIF Slide Lock

Rated 1 A per contact at 125 V, with a temperature range of -20°C to 85°C, this connector suits signal-level interconnects inside consumer or industrial electronics enclosures where the ambient stays below 85°C.

Mating and Fit: FPC Thickness and Actuator

The vertical contact style is 1-sided — the FPC pads contact on one side only. The slide lock actuator is black polyamide (PA9T), same as the housing. Mounted height above board is 0.217" (5.50 mm).

Frequently asked questions

What is the pitch of the 2-1734248-6?

The pitch is 0.039" (1.00 mm). This is the centre-to-centre spacing of the 26 positions.

Is the 2-1734248-6 a Zero Insertion Force (ZIF) connector?

Yes, it features a Zero Insertion Force (ZIF) mechanism with a slide lock actuator. The FPC slides in without force on the contacts, and the lock secures it.
