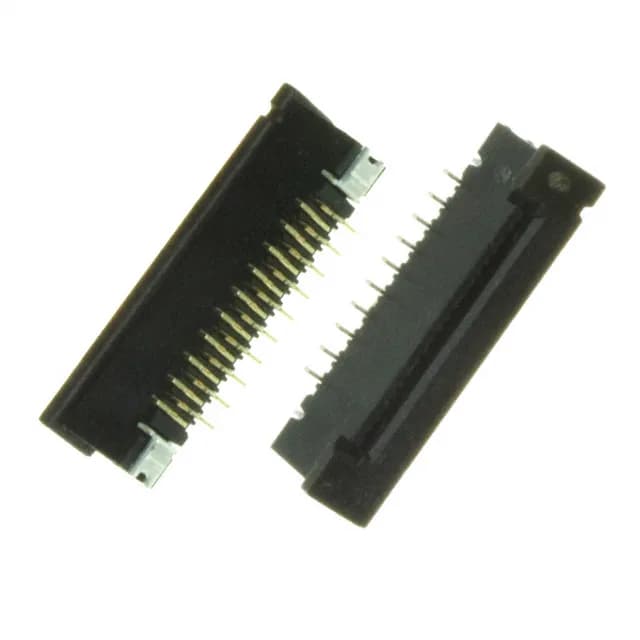

TE Connectivity AMP Connectors 2-1734742-0, FFC vertical connector, 20 positions, 0.020" (0.50mm) pitch, SMD, ZIF slide lock, gold flash contacts, 0.5 A, -20°C to 85°C.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Cable end type | Straight or Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -20°C ~ 85°C |
| Housing color | Black |
| Actuator color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic, Glass Filled |
| Actuator material | Thermoplastic |
| Parameter | Value |
|---|---|
| Height above board | 0.163\" (4.15mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 20 |
| Contact finish thickness | Flash |
The 2-1734742-0 is a vertical-mount FFC connector from TE Connectivity, pitched at 0.50 mm and carrying 20 circuits. The ZIF actuation uses a slide lock, and the housing includes solder retention features for board-level stability.
Yes, ROHS3 compliant.
Accepts 0.30 mm thick FFC or FPC.
