TE Connectivity AMP Connectors 2-1747981-3

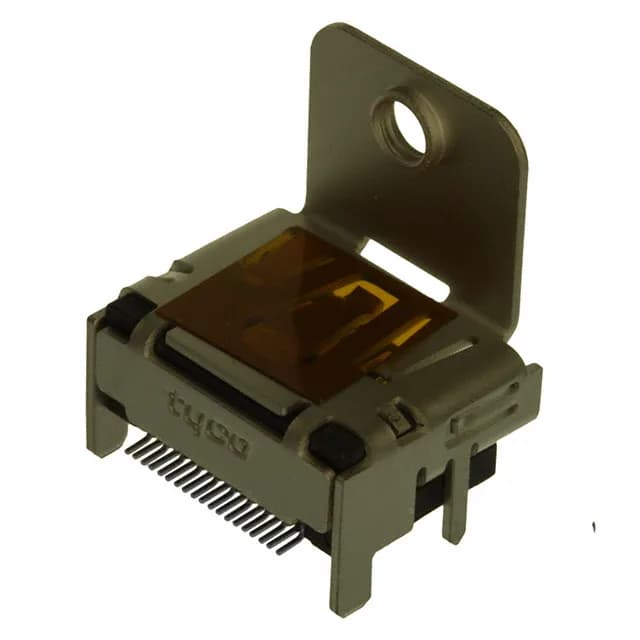

TE Connectivity 2-1747981-3 HDMI Receptacle, 19-Pin

MPN 2-1747981-3
Active

TE Connectivity HDMI receptacle, 19 contacts, Type A, gold-plated, 0.5A, 40VAC, panel mount / SMT right-angle, 10,000 mating cycles, UL94 V-0.

$4.2698 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-1747981-3 specifications
ParameterValue
MountingPanel Mount; Surface Mount, Right Angle; Through Hole
Connector typeHDMI
Voltage - rated40VAC
Current rating0.5A
Positions19
Mounting featureFlange, Horizontal
Operating temperature-25°C ~ 70°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
Mating cycles10000
Contact finishGold
Number of ports1

Product details

HDMI Type A Receptacle — 19-Pin Panel-Mount for Fixed Installations

The TE Connectivity 2-1747981-3 is a full-size HDMI Type A receptacle carrying the standard 19-contact pinout. It is specified for applications where the HDMI port must be anchored to a panel or enclosure rather than floating on a cable — think wall plates, kiosk I/O panels, AV receivers, or industrial display interfaces where the mating plug is inserted and removed repeatedly over the product's life. The connector supports three mounting methods in one body: panel mount with a flange for horizontal orientation, surface-mount right-angle for PCB edge placement, and through-hole for additional mechanical retention. This flexibility means the same part number can be used across different enclosure designs without requalifying a new connector. Gold contact finish is standard on the mating interface, paired with a copper alloy shell/shielding material.

10,000 Mating Cycles — Built for Frequent Plug/Unplug Duty

The headline durability figure here is 10,000 mating cycles — roughly 10x what a standard consumer HDMI connector is rated for. That rating tells you the contact beam and plating are designed for field-service scenarios where the cable is connected and disconnected daily over years, not just at initial installation. This is the spec that separates a panel-mount HDMI for a test station or public kiosk from a basic board-edge HDMI inside a TV that sees a handful of mates in its lifetime. The 40 VAC voltage rating matches the standard HDMI low-voltage signal environment.
