TE Connectivity AMP Connectors 2-179694-2

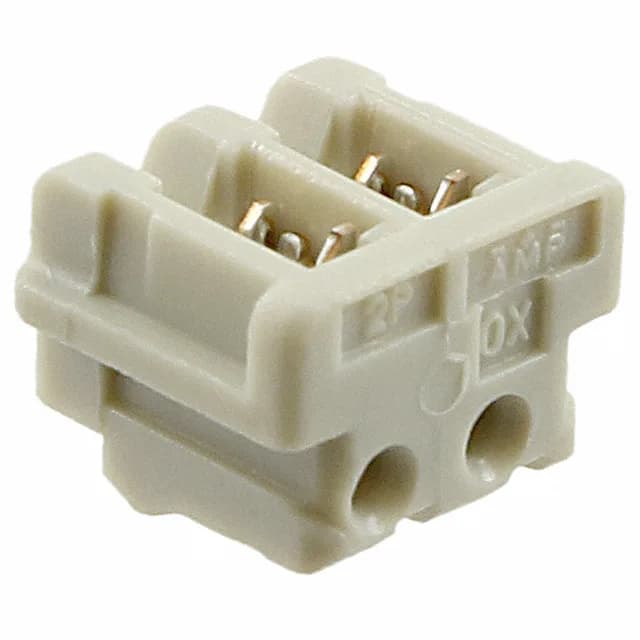

TE Connectivity 2-179694-2 CT 2-Position IDC Receptacle

MPN 2-179694-2
Active

TE Connectivity CT series, 2-position IDC receptacle, 2.00mm pitch, 1 row, tin contacts, free-hanging, 24 AWG, gray housing, bulk.

$0.3400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-179694-2 specifications
ParameterValue
SeriesCT
Wire typeDiscrete
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge24 AWG
Cable terminationIDC
ColorGray
Pitch0.079\" (2.00mm)
PackageBulk
Contact finishTin
Rows1
Positions2

Product details

2-Position IDC Receptacle, 2.00 mm Pitch — TE CT Series

The TE Connectivity 2-179694-2 is a 2-position receptacle from the CT series, terminated via IDC (Insulation Displacement Connection) for discrete 24 AWG wire. The 2.00 mm pitch keeps the footprint compact — the two positions match a 2-circuit BOM line exactly, so there is no unused cavity to seal or manage.

IDC termination displaces the insulation to make contact with the conductor — no separate crimp terminal or tool is required. The free-hanging mount means this receptacle floats in the harness rather than locking to a panel.

MPN
2-179694-2
