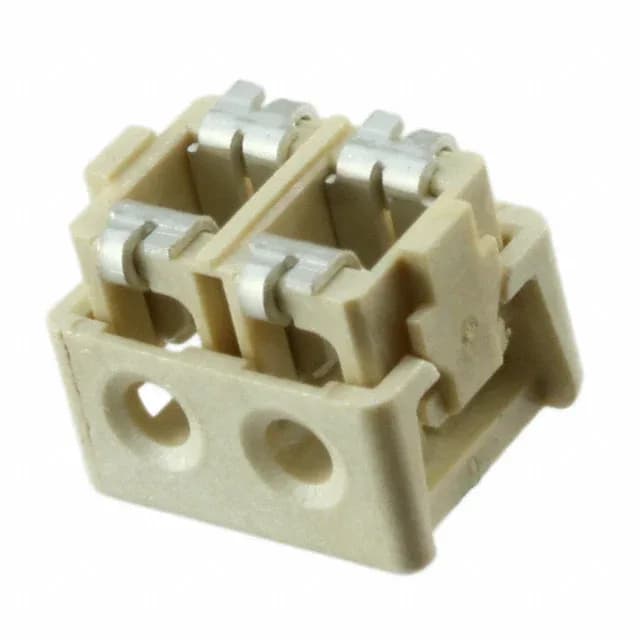

2-Position IDC for Discrete 22 AWG Wire — SMD Right-Angle
It terminates via insulation displacement — no stripping or crimping — and mounts to the PCB with a surface-mount, right-angle footprint. The natural-colored housing carries tin-plated contacts, and the Feed Through feature lets the wire pass straight through the connector body for daisy-chain or pass-through wiring.
What the 4.00 mm Pitch and Right-Angle Mount Mean for Your Layout
IDC Termination for 22 AWG — No Crimp, No Strip
The IDC termination accepts only 22 AWG wire — the slot geometry is fixed for that gauge. Insert the unstripped wire into the slot and press down; the contact forks pierce the insulation and grip the conductor. The Feed Through feature means the wire can extend beyond the connector body, which is useful if you need to continue the same wire to another point. Tin contacts are adequate for low-cycle applications — this is a set-and-forget interconnect, not a repeatedly mated connector.
