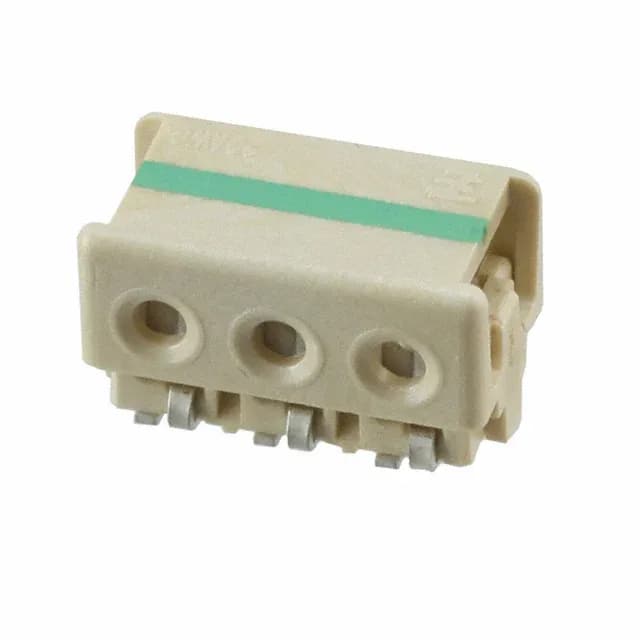

3-Position IDC Connector for 22 AWG Discrete Wires — 4.00 mm Pitch, SMD Right-Angle
A feed-through feature allows daisy-chaining or pass-through wiring in multi-drop signal chains.
Board Layout and Termination Fit
The 4.00 mm board-side pitch sets the pad spacing on the PCB — a standard 4.00 mm grid, so the footprint is straightforward for a 3-position single-row layout. The IDC termination accepts 22 AWG solid or stranded wire without stripping or crimping; the insulation is displaced by the contact tines during assembly. The natural (unpainted) housing colour is typical for this series and has no effect on fit.
