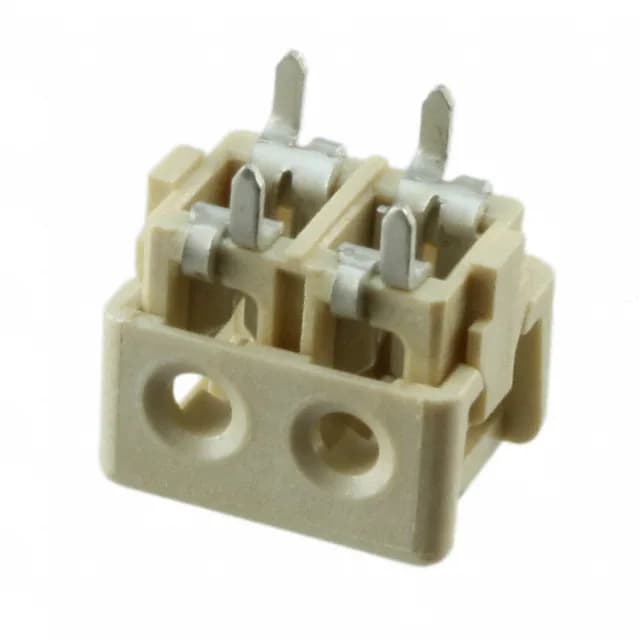

TE 2-2106489-2 — 2-Position IDC Connector for 22 AWG Discrete Wires
It uses a 0.157" (4.00mm) cable pitch and mounts through-hole, right-angle to the PCB. The natural-colored closed-end housing provides a positive stop for the wire bundle, preventing over-insertion during the IDC press operation.
Pitch Check — 0.157" (4.00mm) Cable and Board Side Match
Both the cable pitch and board-side pitch are 0.157" (4.00mm), so the IDC slot spacing matches the through-hole footprint exactly. That means the press fixture aligns the conductors to the PCB pads without a pitch transition — one less variable to check in the assembly drawing.
