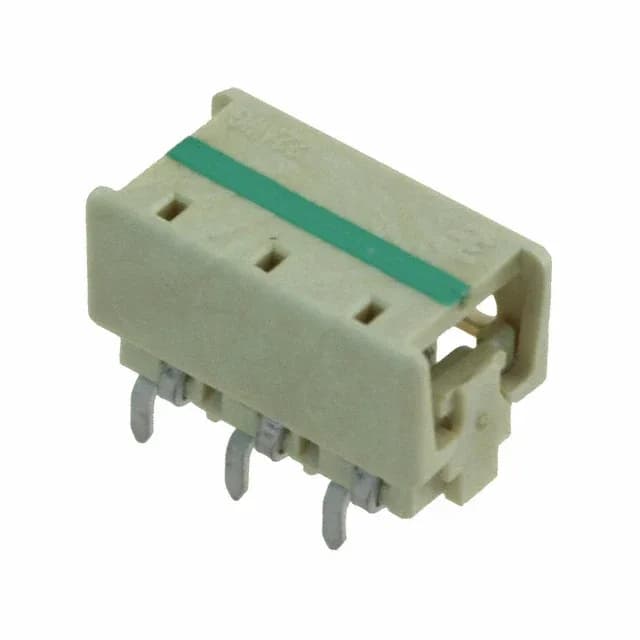

TE Connectivity 2-2106489-3, Individual Wires IDC Connector, 3 positions, 1 row, 22 AWG, 0.157" (4.00mm) pitch, Through Hole, Right Angle, Tin contact finish, Closed End.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Individual Wires |
| Wire gauge | 22 AWG |
| Cable pitch | 0.157\" (4.00mm) |
| Cable termination | IDC |
| Color | Natural |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Closed End |
| Contact finish | Tin |
| Rows | 1 |
| Board-Side pitch | 0.157\" (4.00mm) |
| Positions | 3 |
The closed-end feature means the IDC slot is capped at the back. When you press the 22 AWG wire into the slot, it bottoms out against the closed end rather than pushing through the back of the connector. This gives a positive stop for consistent insertion depth and prevents the wire from protruding past the housing – important when the connector sits against a panel or another board. No secondary retainer needed for the wire position.
Submit an RFQ for the quantity you need.
The 1-216791-6 is a different connector class (16-position ribbon cable DIP header) and is not a functional equivalent. The 3-position, 4.00 mm pitch, single-row IDC format is specific to this part number.
