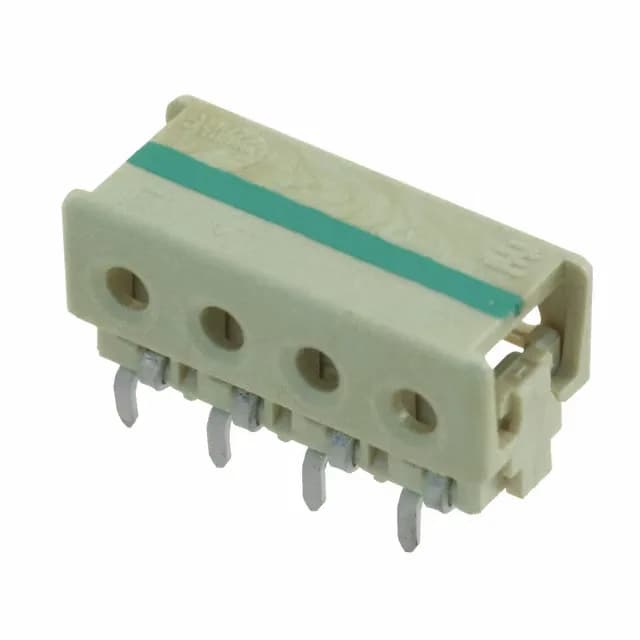

TE Connectivity 2-2106751-4 IDC connector, 4 positions, 1 row, 0.157" (4.00 mm) board-side and cable pitch, through-hole right-angle mounting, tin contacts, 22 AWG, feed-through feature.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Individual Wires |
| Wire gauge | 22 AWG |
| Cable pitch | 0.157\" (4.00mm) |
| Cable termination | IDC |
| Color | Natural |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Feed Through |
| Contact finish | Tin |
| Rows | 1 |
| Board-Side pitch | 0.157\" (4.00mm) |
| Positions | 4 |
The 2-2106751-4: It terminates 22 AWG wire directly into the insulation displacement slot — no crimping, no separate terminal.
That means the PCB footprint needs 4.00 mm between adjacent through-hole pins. The 4-position count is the BOM line match — if your circuit count is 4, this is the one.
The feed-through feature means the wire passes straight through the connector body.
Active lifecycle, ROHS3 compliant.
The board-side and cable pitch are both 0.157" (4.00 mm).
Yes, it is ROHS3 compliant.
This part is sourced to order.
