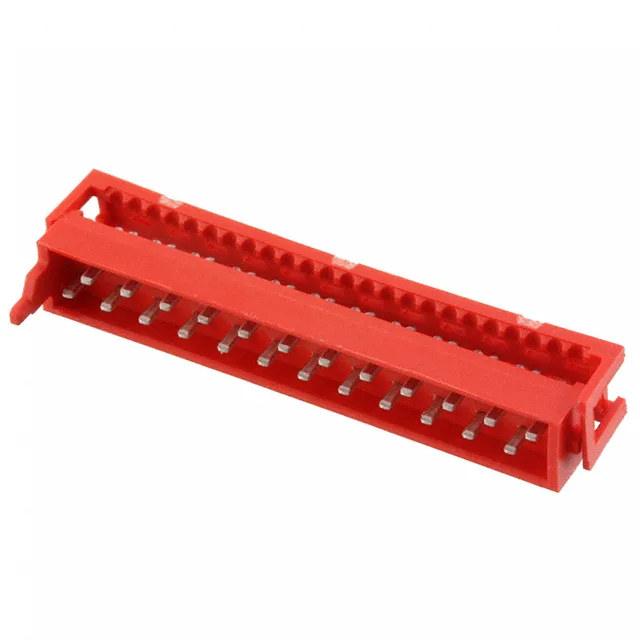

2-215083-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 2-215083-4 Micro-MaTch IDC Plug, 24 Pos, 0.100" Pitch

MPN2-215083-4
Active

TE Connectivity Micro-MaTch series, Plug, 24 Positions, 2 Row, 0.100" (2.54mm) Pitch, IDC Termination, 28 AWG, Tin Contact Finish, Free Hanging, Red.

$0.9977Ref. price · indicative, final on quote
2-215083-4 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2-215083-4 Technical Specifications
ParameterValue
SeriesMicro-MaTch
Wire typeRibbon Cable
GenderMale Pin
Mounting typeFree Hanging (In-Line)
Connector typePlug
Wire gauge28 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesFeed Through
Row spacing0.059\" (1.50mm)
Contact finishTin
Rows2
Positions24

Product details

24-Position IDC Plug for 28 AWG Ribbon Cable

The TE Connectivity 2-215083-4 is a 24-position Micro-MaTch IDC plug designed for mass-termination of 28 AWG ribbon cable. The tin-plated male pins are suited for signal-level interconnects inside equipment enclosures where the mating cycle count is moderate. The free-hanging (in-line) housing with feed-through feature allows the ribbon cable to pass straight through the connector, simplifying daisy-chain wiring in harness assemblies. The red housing colour aids visual identification on the assembly line.

IDC Termination and Wire Gauge

No wire stripping or crimping is needed, which speeds harness assembly for high-volume builds.

The tin contact finish is compatible with tin-plated header pins for a reliable gas-tight connection at first mate.

Frequently asked questions

What is the mating connector for 2-215083-4?

This plug mates with a Micro-MaTch header of the same 24-position, 0.100" pitch, dual-row configuration. The header is the male pin counterpart in the same series.

Is 2-215083-4 RoHS compliant?

Yes, the 2-215083-4 is ROHS3 compliant.
