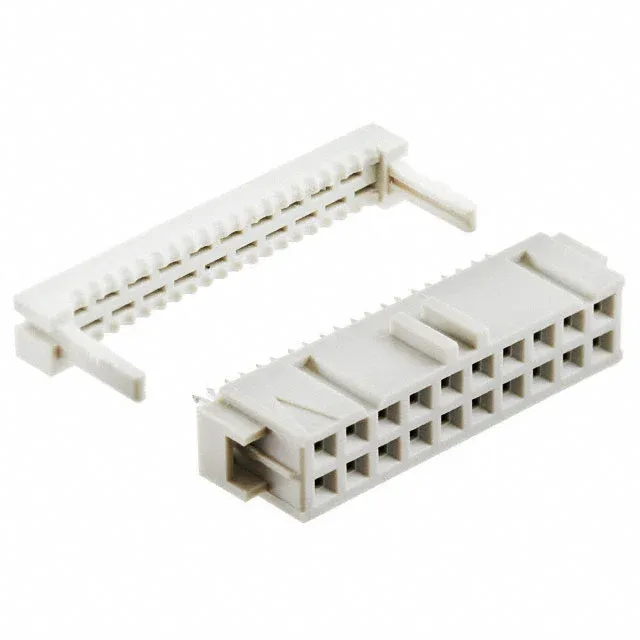

2-215882-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMP-Latch 2-215882-0, 20-pos IDC Receptacle, 0.100" Pitch

MPN2-215882-0
Active

TE Connectivity AMP-Latch 2-215882-0, receptacle, 20 positions, 2 rows, 0.100" (2.54mm) pitch, IDC termination, gold 31.5µin contacts, free-hanging, gray, RoHS.

$1.2600Ref. price · indicative, final on quote
2-215882-0 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2-215882-0 Technical Specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge28 AWG, Stranded; 26-30 AWG, Solid
Cable terminationIDC
ColorGray
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through, Polarizing Key
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions20
Contact finish thickness31.5µin (0.80µm)

Product details

AMP-Latch IDC Receptacle for 20-Conductor Ribbon Cable

The TE Connectivity AMP-Latch 2-215882-0 is a 20-position, dual-row IDC receptacle designed for mass-termination to 0.100" (2.54mm) pitch ribbon cable. The gray housing carries a feed-through feature for daisy-chaining multiple connectors along a single cable run, plus a polarizing key that prevents reversed mating with the corresponding header.

Wiring and Termination — IDC to Ribbon Cable

Termination is insulation-displacement (IDC): the ribbon cable is laid across the contact slots and pressed down with a hand or pneumatic tool, displacing the insulation to make contact with the gold-plated female sockets.

Position Count and Cross-Shop

At 20 positions, this receptacle matches a 20-conductor ribbon cable one-to-one.

Frequently asked questions

What wire gauge does 2-215882-0 accept?

It accepts 28 AWG stranded wire and 26-30 AWG solid wire, both for standard 0.100" pitch ribbon cable.

Is the 2-215882-0 RoHS compliant?

Yes, the 2-215882-0 is RoHS compliant.
