TE Connectivity AMP Connectors 2-215915-6 — Panel-Mount & In-Line Circular

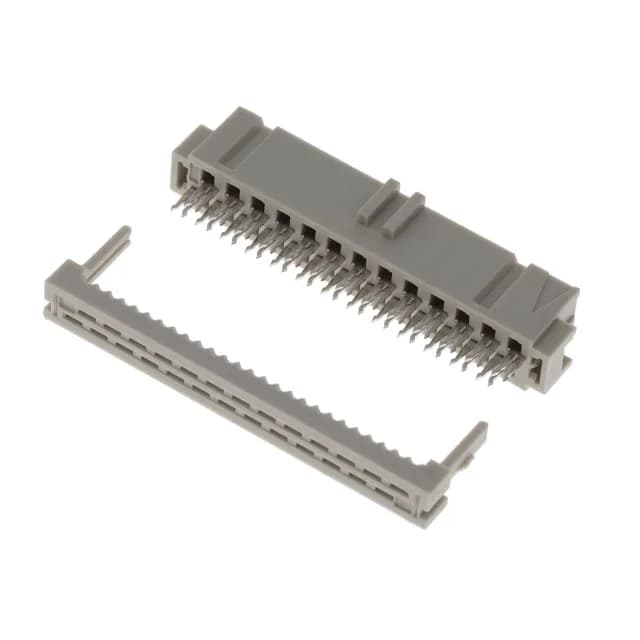

TE AMP-Latch 2-215915-6, 26-Pin IDC Receptacle, 0.100" Pitch

MPN2-215915-6
Active

TE Connectivity AMP-Latch series, receptacle, 26 positions, 2 rows, 0.100" (2.54mm) pitch, IDC termination, gold-plated contacts, free-hanging or right-angle mount.

$1.1900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-215915-6 specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Cable terminationIDC
ColorGray
Pitch0.100\" (2.54mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesFeed Through, Polarizing Key
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions26
Contact finish thickness31.5µin (0.80µm)

Product details

What this connector does in the harness

The TE Connectivity AMP-Latch 2-215915-6 is a 26-position IDC receptacle designed to mass-terminate 26-conductor 0.100" pitch ribbon cable.

Pitch and cable compatibility

Both the contact pitch and the row spacing are 0.100" (2.54mm), matching the standard 26-conductor ribbon cable pitch. The IDC termination pierces the insulation in one press operation — no wire stripping or individual crimping. The free-hanging (in-line) or right-angle mounting options let you route the cable parallel or perpendicular to the board edge.

Frequently asked questions

Where can I buy 2-215915-6?

Submit a quote request to confirm current availability and pricing.

Is 2-215915-6 compatible with 26-pin ribbon cable?

Yes, the 26-position receptacle is designed for 26-conductor 0.100" pitch ribbon cable.
