TE Connectivity AMP Connectors 2-2170705-1 — Pluggable Assemblies

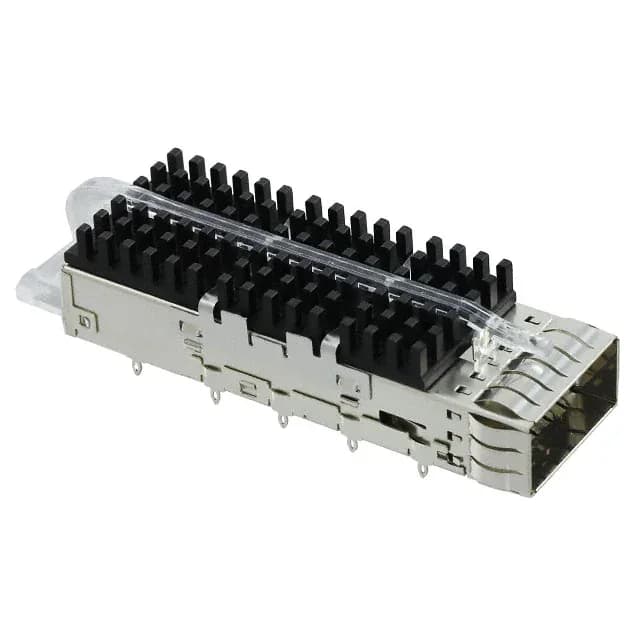

TE 2-2170705-1 ZQSFP+ Cage, Press-Fit, Heat Sink, Light Pipe

MPN2-2170705-1
Active

TE Connectivity ZQSFP+ cage with integrated heat sink and light pipe, 2-2170705-1, press-fit termination, right-angle through-hole mounting, EMI shielded.

$18.6800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

2-2170705-1 specifications
ParameterValue
MountingThrough Hole, Right Angle
Connector typeCage with Heat Sink
PackageTray
FeaturesEMI Shielded, Light Pipe
TerminationPress-Fit

Product details

ZQSFP+ Cage with Integrated Heat Sink and Light Pipe

It is designed for high-speed I/O applications where a pluggable module — QSFP+, QSFP28, or similar ZQSFP+ form factor — needs a shielded, thermally managed port on the PCB edge.

The board footprint must match the press-fit hole pattern and the keep-out zone for the cage and light pipe. The EMI shield is integral to the cage, so the panel cutout and gasket interface are part of the mechanical fit check.

Integrated Heat Sink and Light Pipe

The cage includes a heat sink for thermal management of the pluggable module. The light pipe provides a visual status indicator from the module's LED to the faceplate.

Frequently asked questions

Does the 2-2170705-1 include the heat sink and light pipe?

Yes, the 2-2170705-1 integrates both the heat sink and the light pipe into the cage assembly. No separate heat sink or light pipe components are needed.

Is 2-2170705-1 compatible with QSFP28 modules?

The 2-2170705-1 is a ZQSFP+ cage, which is the mechanical form factor that accepts QSFP+ and QSFP28 modules. Compatibility depends on the module's thermal and EMI requirements matching the cage's integrated heat sink and shielding.

What is the difference between ZQSFP+ and QSFP+?

ZQSFP+ is a reduced-footprint version of the QSFP+ form factor, with a smaller cage and panel cutout while maintaining the same module interface and data rate capability. The 2-2170705-1 uses the ZQSFP+ standard.
