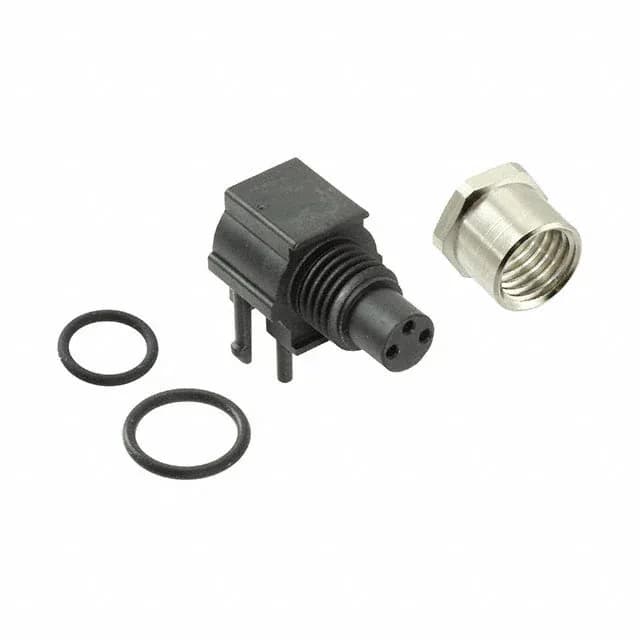

TE Connectivity M8 series, 3-position female receptacle, IP67, gold-plated contacts, 4A at 60VAC/DC, right-angle PCB mount, bulkhead panel mount, solder termination.
| Parameter | Value |
|---|---|
| Series | M8 |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull |
| Voltage rating | 60VAC/DC |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead |
| Operating temperature | -40°C ~ 85°C |
| Color | Silver |
| Shell material | Brass |
| Primary material | Metal |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Board Lock |
| Termination | Solder |
| Applications | Automation Control, Industrial, Telecommunications |
| Shell finish | Nickel |
| Positions | 3 |
| Shell size - insert | M8-3 |
| Contact finish - mating | Gold |
Rated 4 A per contact at 60 VAC/DC. The 3-position count matches the standard M8 A-coded pinout.
The bulkhead flange and board guide locate the receptacle squarely in the panel cutout before soldering. Solder termination allows re-pinning on site with a standard iron.
Yes, 2-2172068-2 is ROHS3 compliant per the manufacturer's listing.
