TE Connectivity AMP Connectors 2-2172089-2 — Circular Cable Assemblies

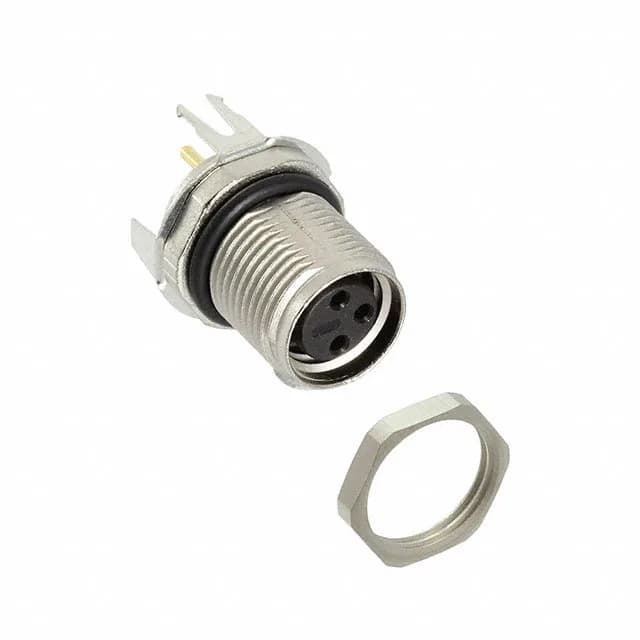

TE 2-2172089-2 M8 Receptacle, 3-Pos, IP67, Shielded

MPN2-2172089-2
Active

TE Connectivity M8 series, receptacle, female sockets, 3 positions, M8-3 shell, solder termination, panel mount with through-hole, IP67, shielded, gold mating contacts, 4A, 60VAC/DC.

$28.0600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesM8
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-2172089-2 key specifications
ParameterValue
SeriesM8
MountingPanel Mount, Through Hole
Connector typeReceptacle, Female Sockets
Fastening typePush-Pull
Voltage rating60VAC/DC
Current rating4A
IP ratingIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialZinc Die Cast
Primary materialMetal

All specifications

2-2172089-2 additional specifications
ParameterValue
PackageBulk
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
ApplicationsAutomation Control, Industrial, Telecommunications
Shell finishNickel
Positions3
Shell size - insertM8-3
Contact finish - matingGold

Product details

M8-3 Receptacle for Sealed Panel-Mount Duty

The zinc die-cast shell with nickel finish carries an IP67 rating — dust-tight and protected against temporary water immersion, but only when fully mated with the corresponding plug. The push-pull fastening allows tool-less field mating, while the board lock anchors the through-hole solder tails to the PCB, resisting shear forces from the attached cable harness.

Shielding and Board Lock

The shielded shell with nickel finish provides EMI containment for signal lines in electrically noisy automation cabinets.

Frequently asked questions

Is 2-2172089-2 a shielded connector?

Yes. The 2-2172089-2 has a shielded zinc die-cast shell with nickel finish, providing EMI protection for the signal contacts. The shielding is effective when the receptacle is mated with a shielded plug and the cable shield is terminated properly.

What is the pinout of TE 2-2172089-2?

The 2-2172089-2 is a 3-position female receptacle with an M8-3 shell. The pin configuration follows the M8 A-coded standard — the three contacts are arranged in a triangular pattern. The specific signal assignment depends on the application wiring; the connector itself is unkeyed for A-coding.

Does 2-2172089-2 have a board lock feature?

Yes. The receptacle includes a board lock — metal tabs that solder into the PCB alongside the through-hole pins. This anchors the connector during reflow and adds mechanical resistance to vibration and cable pull forces.
