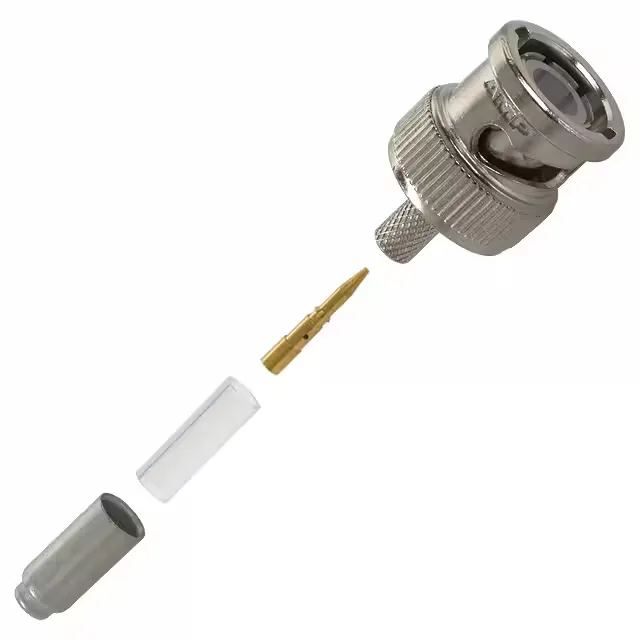

2-221128-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 2-221128-1 BNC Plug, 50 Ohm, 4 GHz

MPN2-221128-1
Obsolete

TE Connectivity BNC plug, male pin, 50 Ohm, crimp termination, RG-174/188/316 cable, bayonet lock, 500 mating cycles, 4 GHz max frequency, 500 V rating, Bulk.

$9.0800Ref. price · indicative, final on quote
2-221128-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2-221128-1 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-174, 188, 316
Operating temperature-55°C~85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolyethylene (PE)
Center contact materialBrass
PackageBulk
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

BNC Plug for RG-174/188/316 — 50 Ohm, Crimp Termination

The centre contact is gold-plated brass; the body is zinc with a nickel finish.

This plug is built for RG-174 and RG-316 cable — two common small-diameter 50 Ohm coax types. The crimp termination for both centre pin and braid means a consistent, repeatable termination with the correct hex die set.

No official replacement order code is on record. For a BOM that needs this exact TE part number, the channel is surplus and broker stock; expect to confirm quantity and lead time per request.

Frequently asked questions

Where can I buy the 2-221128-1?

The 2-221128-1 is obsolete and sourced through independent distribution. Submit an RFQ with your target quantity — availability and pricing are confirmed at quote time through the surplus and broker channel.

Is the 2-221128-1 obsolete?

Yes, TE Connectivity lists the 2-221128-1 as Obsolete. No official replacement part number has been issued.

What is the impedance and frequency rating of the 2-221128-1?

The 2-221128-1 is a 50 Ohm BNC plug rated to 4 GHz maximum frequency with 0.2 dB insertion loss. This covers most lab instrumentation, RF test, and low-power transmitter applications.
