TE Connectivity AMP Connectors 2-292236-2 — Specialty Circular

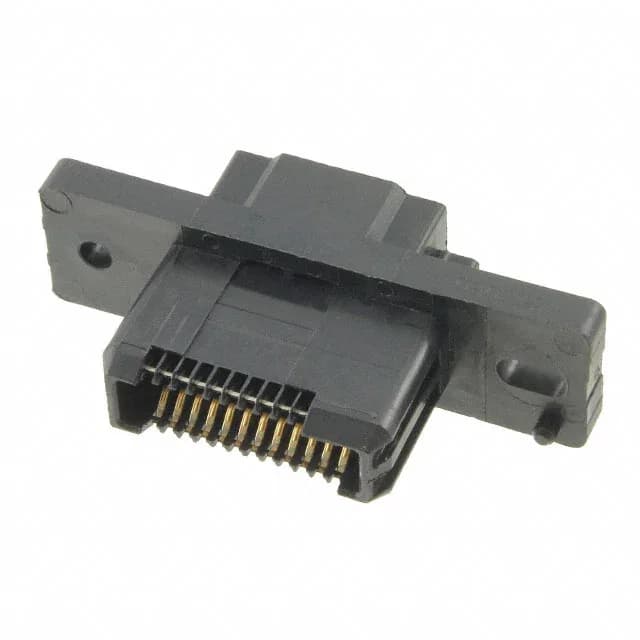

TE Mini CT 2-292236-2, 22-Position Receptacle, 1.50 mm Pitch

MPN2-292236-2
Active

TE Connectivity Mini CT, Mini-Drawer receptacle, 22 positions, 2 rows, 0.059" (1.50mm) pitch, panel mount, gold contact finish, UL94 V-0, tray.

$9.6600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini CT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-292236-2 specifications
ParameterValue
SeriesMini CT
MountingPanel Mount
Connector typeMini-Drawer
ColorBlack
Material flammability ratingUL94 V-0
Pitch0.059\" (1.50mm)
PackageTray
Contact finishGold
Rows2
Positions22

Product details

Panel-mount Mini-Drawer receptacle for harness integration

The TE Connectivity 2-292236-2 is a 22-position, dual-row panel-mount receptacle from the Mini CT series, styled as a Mini-Drawer connector.

What mates with the 2-292236-2?

The 2-292236-2 is the receptacle side of a Mini-Drawer pair. It mates with the corresponding Mini CT header or plug that shares the same 1.50 mm pitch and 22-position layout. The panel-mount design means the receptacle stays fixed to the enclosure wall while the mating half connects from the harness side. Confirm the mating part number from the same Mini CT series for the exact locking ramp and keying features.

Frequently asked questions

Where can I buy the 2-292236-2?

The 2-292236-2 is sourced to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at the time of quote — submit an RFQ for your target quantity and delivery window.

Is the 2-292236-2 RoHS compliant?

Yes, the 2-292236-2 is ROHS3 Compliant, meeting the latest EU RoHS directive requirements.

What is the 2-292236-2 panel cutout size?

The panel cutout dimensions are not listed in the available specifications. Refer to the TE Connectivity product drawing for the Mini-Drawer receptacle to confirm the cutout profile and mounting hole pattern.
