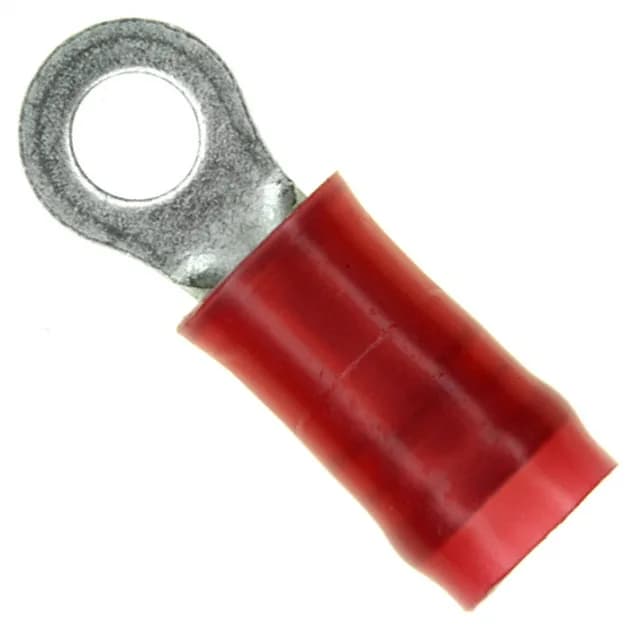

TE Connectivity AMP PIDG ring terminal, order code 2-31880-1, 16-22 AWG, #4 stud, circular, 0.031" (0.79mm) thick, tin-plated copper, insulated red nylon, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.218\" (5.54mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 4 Stud |
| Contact finish | Tin |
| Length - overall | 0.672\" (17.07mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
The 2-31880-1 is a PIDG-series ring terminal from TE Connectivity AMP Connectors, accepting 16-22 AWG wire and terminating to a #4 stud with a crimp barrel. The tin-plated copper contact is 0.031" (0.79mm) thick and the red nylon insulation covers an insulation diameter range of 0.105" to 0.140" (2.67mm to 3.56mm).
The 2-31880-1 is red, indicating the insulation material is polyamide (nylon) and the wire gauge range is 16-22 AWG.
No. The 1377172-7 is a non-insulated Solistrand terminal for 14-16 AWG wire on an 8 stud, while the 2-31880-1 is an insulated PIDG terminal for 16-22 AWG on a #4 stud — the stud size and wire range differ, so a direct drop-in is not possible.
