PIDG ring terminal for 16-22 AWG
The 2-31886-2: The tin-plated copper contact is 0.031" (0.79mm) thick with serrated termination for grip, and the nylon insulation accommodates 0.105" to 0.140" (2.67mm to 3.56mm) insulation diameter.

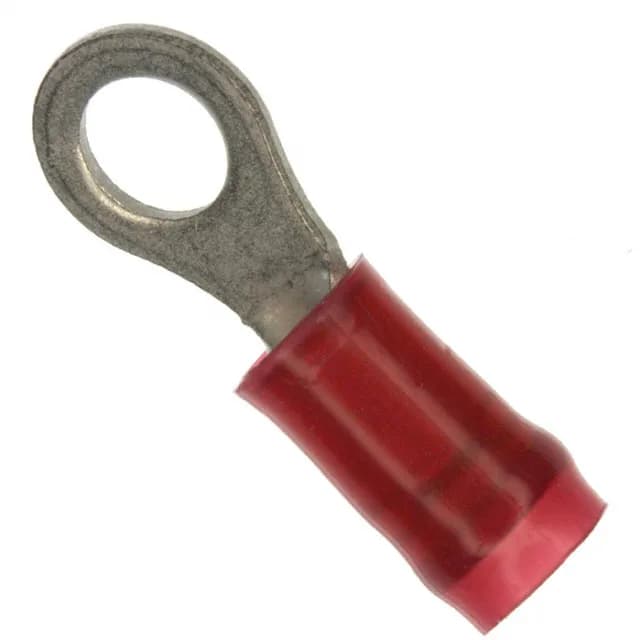

TE PIDG 2-31886-2 Ring Terminal, 16-22 AWG, #8 Stud
MPN2-31886-2
Active
TE Connectivity AMP Connectors PIDG ring terminal, order code 2-31886-2, circular, 16-22 AWG, #8 stud, tin-plated copper, 0.031" (0.79mm) thickness, red insulated, crimp termination, free hanging.
$0.4200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.281\" (7.14mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.797\" (20.24mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
Product details
Frequently asked questions
Where can I buy 2-31886-2 and how do I get a price?
Pricing and stock are confirmed per RFQ against the BOM quantity.
What is 2-31886-2's listed color and series?
The 2-31886-2 is a red insulated terminal from the PIDG series.
