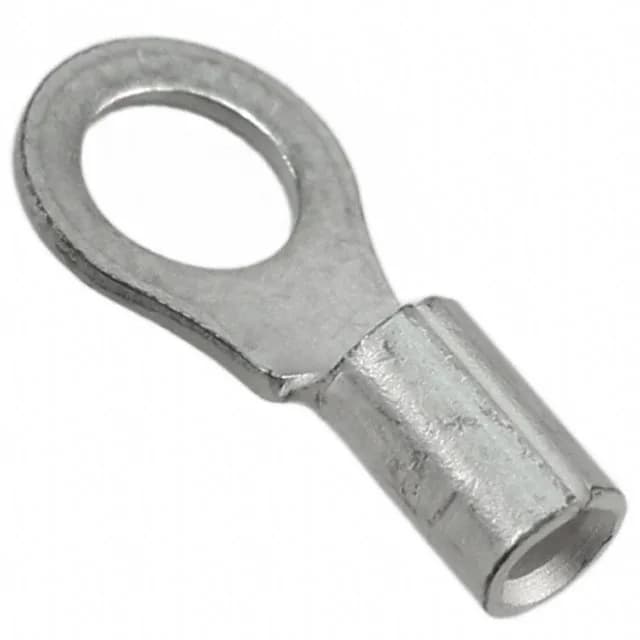

TE Connectivity AMP Solistrand ring terminal, order code 2-320093-1, 14-16 AWG, #10 stud size, circular terminal type, tin-plated copper contact, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.669\" (16.99mm) |
The 2-320093-1 is the 14-16 AWG member of TE's Solistrand ring terminal line, terminated to a #10 stud. The terminal uses a brazed seam and serrated crimp barrel for conductor grip; the tin-plated copper body is non-insulated for applications where the crimp joint is accessible.
No pin-compatible alternative is listed for this ring terminal series; the 2-320093-1 is the 14-16 AWG #10 stud variant.
