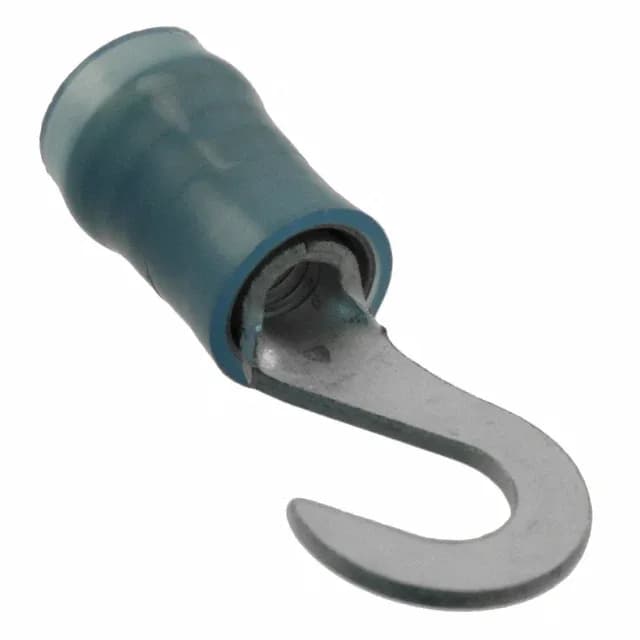

TE Connectivity AMP Connectors PIDG ring hook terminal, order code 2-320306-1, 14-16 AWG, #8 stud size, tin-plated copper contact, insulated blue nylon, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Hook |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.343\" (8.71mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.859\" (21.82mm) |
| Insulation diameter | 0.115\" ~ 0.170\" (2.92mm ~ 4.32mm) |
The 2-320306-1 is an insulated ring hook terminal from the TE PIDG series, accepting 14-16 AWG wire and terminating to a #8 stud. The tin-plated copper contact is crimped to the wire; the blue nylon insulation sleeve covers the barrel and part of the wire entry, with a serrated inner surface that grips the conductor during crimping.
The insulation sleeve is blue, per the PIDG series color coding for 14-16 AWG ring terminals.
