TE Connectivity AMP Connectors 2-320554-1 — Ring Terminals

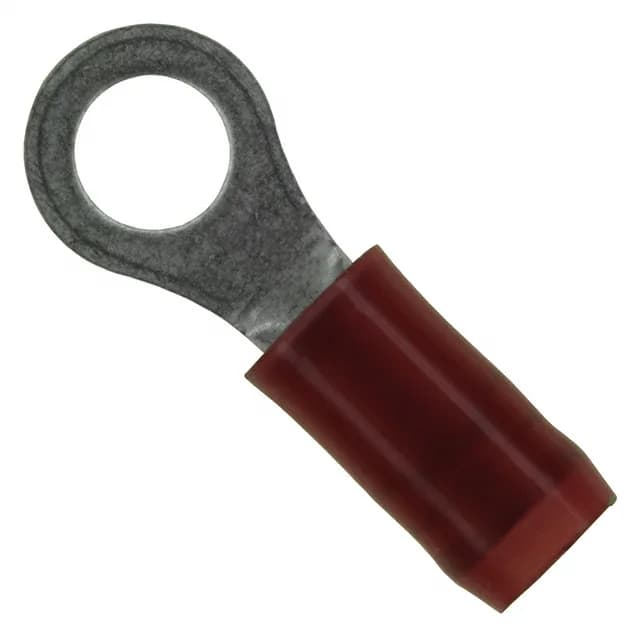

2-320554-1 TE Connectivity PIDG Ring Terminal, 16-22 AWG

MPN2-320554-1
Active

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-320554-1, 16-22 AWG, #8 stud, circular terminal type, tin-plated copper contact, insulated, serrated termination, free hanging in-line crimp.

$0.3500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-320554-1 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.281\" (7.14mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)8 Stud
Contact finishTin
Length - overall0.797\" (20.24mm)
Insulation diameter0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)

Product details

PIDG ring terminal for 16-22 AWG

The 2-320554-1 is a PIDG-series ring terminal from TE Connectivity AMP Connectors, accepting 16-22 AWG wire and terminating to a #8 stud. The tin-plated copper contact is 0.031" (0.79mm) thick, insulated with red polyamide (PA) nylon, and uses a serrated termination for crimp retention.

Wire range and insulation fit

The insulation diameter range of 0.080" ~ 0.125" (2.03mm ~ 3.18mm) covers the typical jacket thickness for 16-22 AWG stranded wire — confirm the jacket OD before crimping to ensure the insulation grip seats properly.
