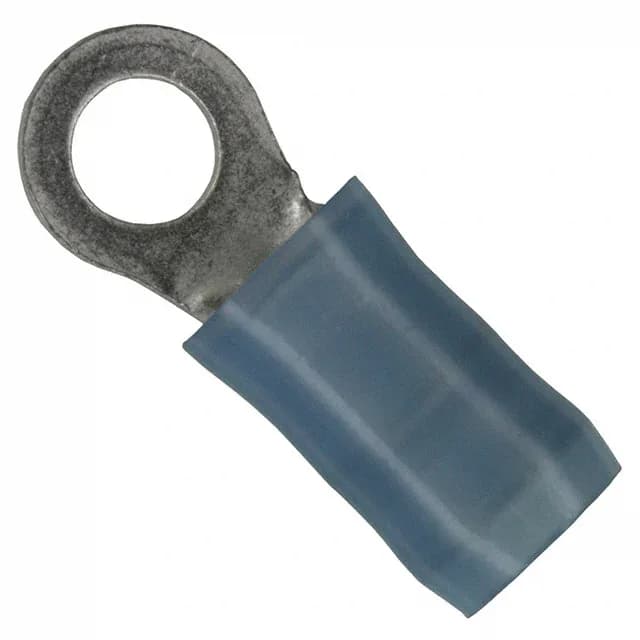

TE Connectivity AMP PIDG ring terminal, order code 2-320561-4, circular, 14 AWG, #6 stud size, 0.031" (0.79mm) thickness, tin-plated copper contact, insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14 AWG |
| Color | Blue, Green Stripe |
| Contact material | Copper |
| Width - outer edges | 0.250\" (6.35mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Insulation Restriction |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.765\" (19.43mm) |
| Insulation diameter | 0.078\" ~ 0.130\" (1.98mm ~ 3.30mm) |
The 2-320561-4 is a 14 AWG circular ring terminal from TE Connectivity's PIDG series, terminated by crimp and insulated with a polyamide sleeve. The tin-plated copper contact is 0.031" (0.79mm) thick and fits a #6 stud; the insulation barrel accepts wire insulation diameters from 0.078" to 0.130" (1.98mm to 3.30mm).
The insulation is Blue with a Green Stripe.
