TE Connectivity AMP Connectors 2-320564-3 — Ring Terminals

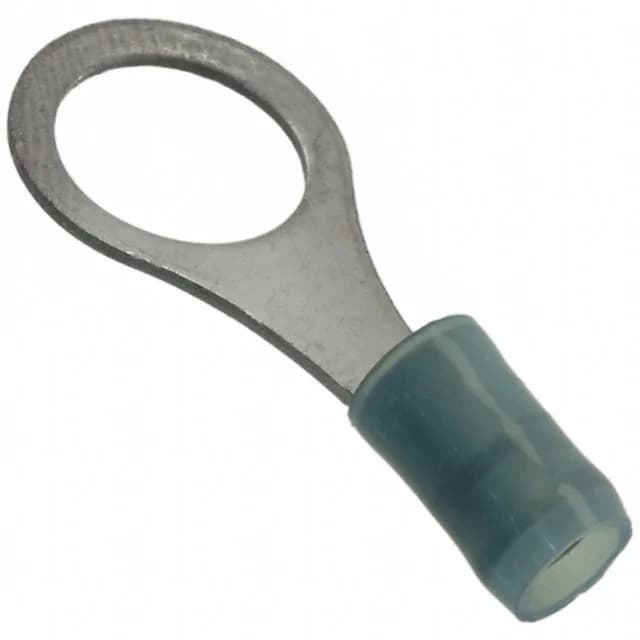

2-320564-3 TE Connectivity PIDG Ring Terminal, 14-16 AWG

MPN2-320564-3
Active

TE Connectivity AMP PIDG ring terminal, order code 2-320564-3, 14-16 AWG, #3/8 stud size, tin-plated copper contact, insulated, serrated termination, free hanging in-line, crimp termination, blue insulation.

$0.4700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-320564-3 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge14-16 AWG
ColorBlue
Contact materialCopper
Width - outer edges0.531\" (13.49mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)3/8 Stud
Contact finishTin
Length - overall1.218\" (30.94mm)
Insulation diameter0.105\" ~ 0.150\" (2.67mm ~ 3.81mm)

Product details

Blue PIDG ring terminal for 14-16 AWG on a #3/8 stud

The 2-320564-3: Overall length is 1.218" (30.94 mm) with an outer edge width of 0.531" (13.49 mm); the insulation sleeve accepts wire diameters from 0.105" to 0.150" (2.67 mm to 3.81 mm).

Stud size selection across the PIDG series

Within the PIDG family at 14-16 AWG, the #3/8 stud size of the 2-320564-3 sits between the #8 stud of the 2-320560-1 and the 5/16 stud of the 2-320575-1 — all share the same 0.031" (0.79 mm) thickness, tin-plated copper contact, and blue nylon insulation.

Frequently asked questions

What compliance documentation does TE Connectivity provide for the 2-320564-3?

The terminal is ROHS3 compliant. No UL or IEC ratings are listed in the available spec data.
