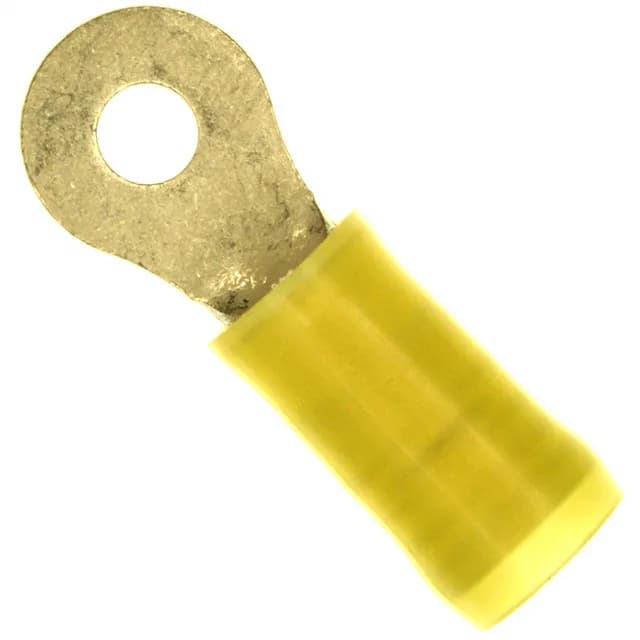

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-320567-2, circular, 10-12 AWG, #6 stud, yellow, insulated, tin-plated copper, 0.040" (1.02mm) thickness, serrated crimp termination.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.375\" (9.53mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.040\" (1.02mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 1.083\" (27.51mm) |
| Insulation diameter | 0.150\" ~ 0.230\" (3.81mm ~ 5.84mm) |
The 2-320567-2 is a 10-12 AWG circular ring terminal from TE Connectivity's PIDG series, terminated by crimp and sized for a #6 stud. The yellow nylon insulation covers a tin-plated copper contact with a serrated inner barrel for conductor grip after crimp. Overall length is 1.083" (27.51mm); the outer edge width measures 0.375" (9.53mm).
The 2-320567-2 is ROHS3 compliant.
