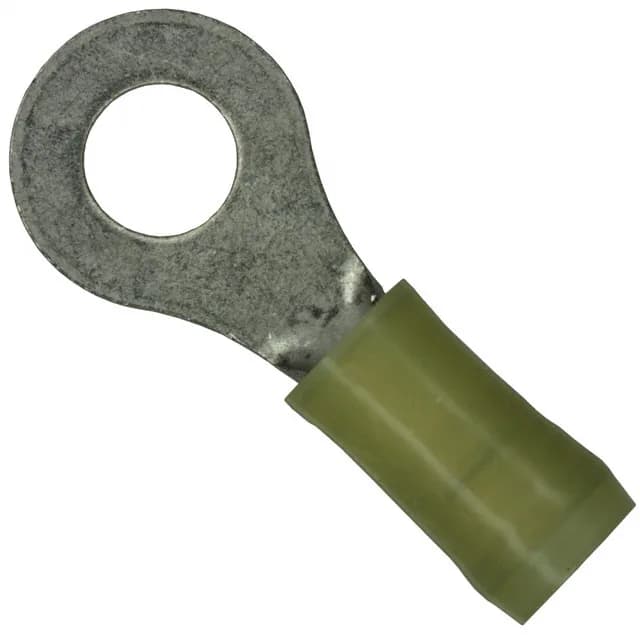

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-320569-3, 10-12 AWG, #1/4 stud, circular, tin-plated copper, insulated yellow nylon, serrated crimp, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.531\" (13.49mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.040\" (1.02mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.322\" (33.58mm) |
| Insulation diameter | 0.150\" ~ 0.230\" (3.81mm ~ 5.84mm) |
The 2-320569-3: Tin-plated copper contact with a serrated crimp bites through insulation oxides for a gas-tight connection. The yellow nylon insulation sleeve covers the barrel and part of the wire entry.
Overall length is 1.322" with an outer edge width of 0.531". The insulation sleeve accepts wire insulation diameters from 0.150" to 0.230". Barrel thickness is 0.040".
Available in Tape & Reel or Cut Tape packaging. Submit an RFQ for current pricing and lead time.
