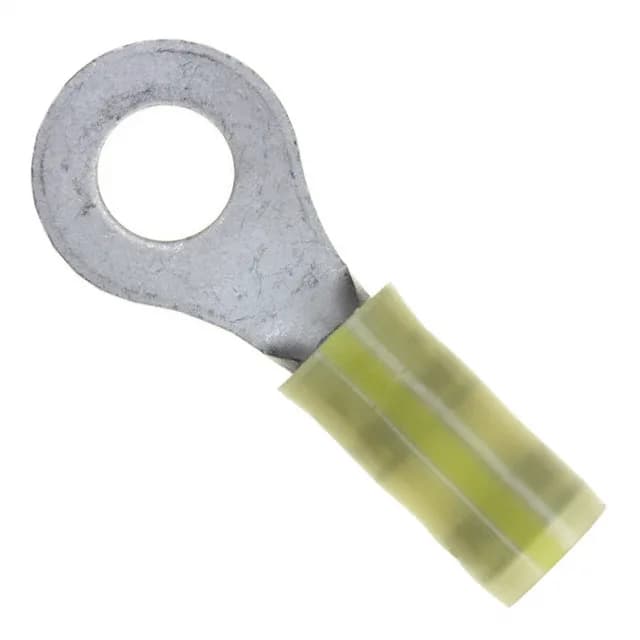

TE Connectivity AMP Connectors 2-320569-5
MPN2-320569-5
Active
CONN RING CIRC 12AWG #1/4 CRIMP
$1.5600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 12 AWG |
| Color | Yellow, Yellow Stripe |
| Contact material | Copper |
| Width - outer edges | 0.531\" (13.49mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Insulation Restriction, Serrated Termination |
| Thickness | 0.040\" (1.02mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.392\" (35.36mm) |
| Insulation diameter | 0.095\" ~ 0.200\" (2.41mm ~ 5.08mm) |
