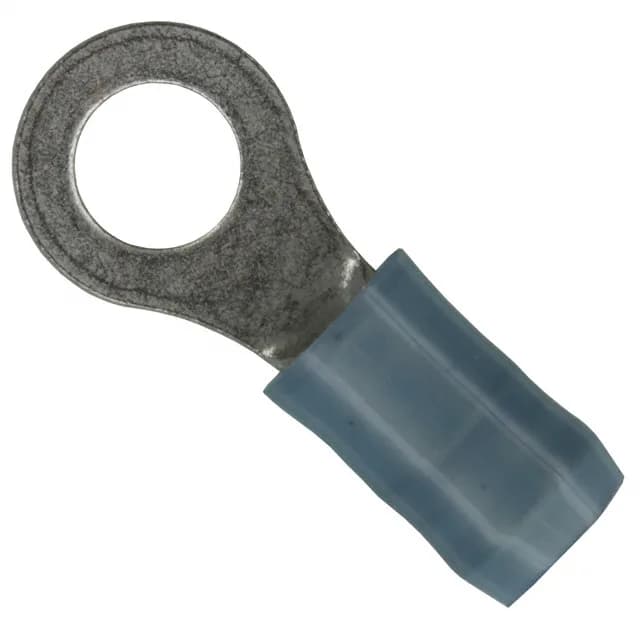

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-320574-2, 14-16 AWG, #10 stud, circular terminal type, tin-plated copper contact, insulated, crimp termination, free hanging, 0.859" overall length.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.343\" (8.71mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.859\" (21.82mm) |
| Insulation diameter | 0.105\" ~ 0.150\" (2.67mm ~ 3.81mm) |
The 2-320574-2 is a PIDG-series insulated ring terminal from TE Connectivity AMP Connectors, accepting 14-16 AWG wire and fitting a #10 stud. The tin-plated copper contact is crimp-terminated and the nylon insulation covers an insulation diameter range of 0.105" to 0.150" (2.67mm to 3.81mm).
The 2-320574-2 is ROHS3 compliant.
