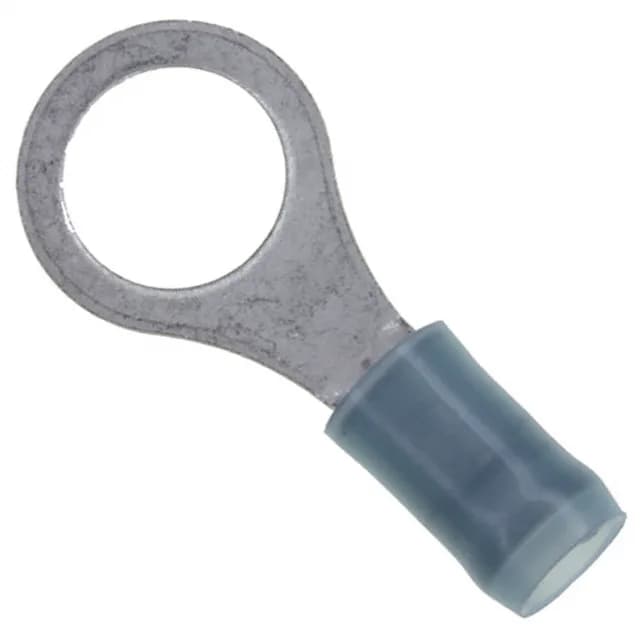

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-320575-1, 14-16 AWG, #5/16 stud size, circular terminal, insulated, tin-plated copper contact, blue, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.469\" (11.91mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 5/16 Stud |
| Contact finish | Tin |
| Length - overall | 1.078\" (27.38mm) |
| Insulation diameter | 0.105\" ~ 0.150\" (2.67mm ~ 3.81mm) |
The 2-320575-1 is an insulated PIDG ring terminal from TE Connectivity AMP Connectors, sized for 14-16 AWG wire and a #5/16 stud.
The terminal accepts wire insulation diameters from 0.105" to 0.150" (2.67 mm to 3.81 mm). Overall length is 1.078" (27.38 mm); the outer width at the ring is 0.469" (11.91 mm). The 0.031" (0.79 mm) thick ring provides the conductor cross-section for the 14-16 AWG range.
The terminal is ROHS3 compliant. No UL or IEC certification is listed in the available specifications.
