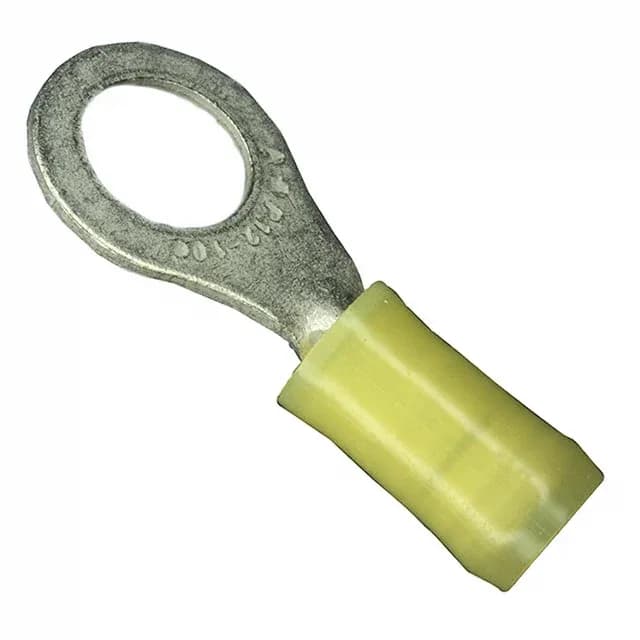

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-320576-1, 10-12 AWG, #5/16 stud, circular, tin-plated copper, insulated, yellow, serrated termination, crimp, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.531\" (13.49mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.040\" (1.02mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 5/16 Stud |
| Contact finish | Tin |
| Length - overall | 1.322\" (33.58mm) |
| Insulation diameter | 0.150\" ~ 0.230\" (3.81mm ~ 5.84mm) |
The 2-320576-1: The tin-plated copper contact is crimp-terminated and free-hanging, with a serrated inner barrel that grips the conductor during crimping.
The nylon insulation accepts wire insulation diameters from 0.150" to 0.230" (3.81 mm to 5.84 mm). Overall length is 1.322" (33.58 mm); outer edge width is 0.531" (13.49 mm). The terminal body is 0.040" (1.02 mm) thick — a standard thickness for this wire gauge range.
Orderable under the listed part number. Availability and pricing are confirmed per RFQ against the BOM quantity.
Yellow. The color corresponds to the 10-12 AWG wire gauge range in the PIDG series.
